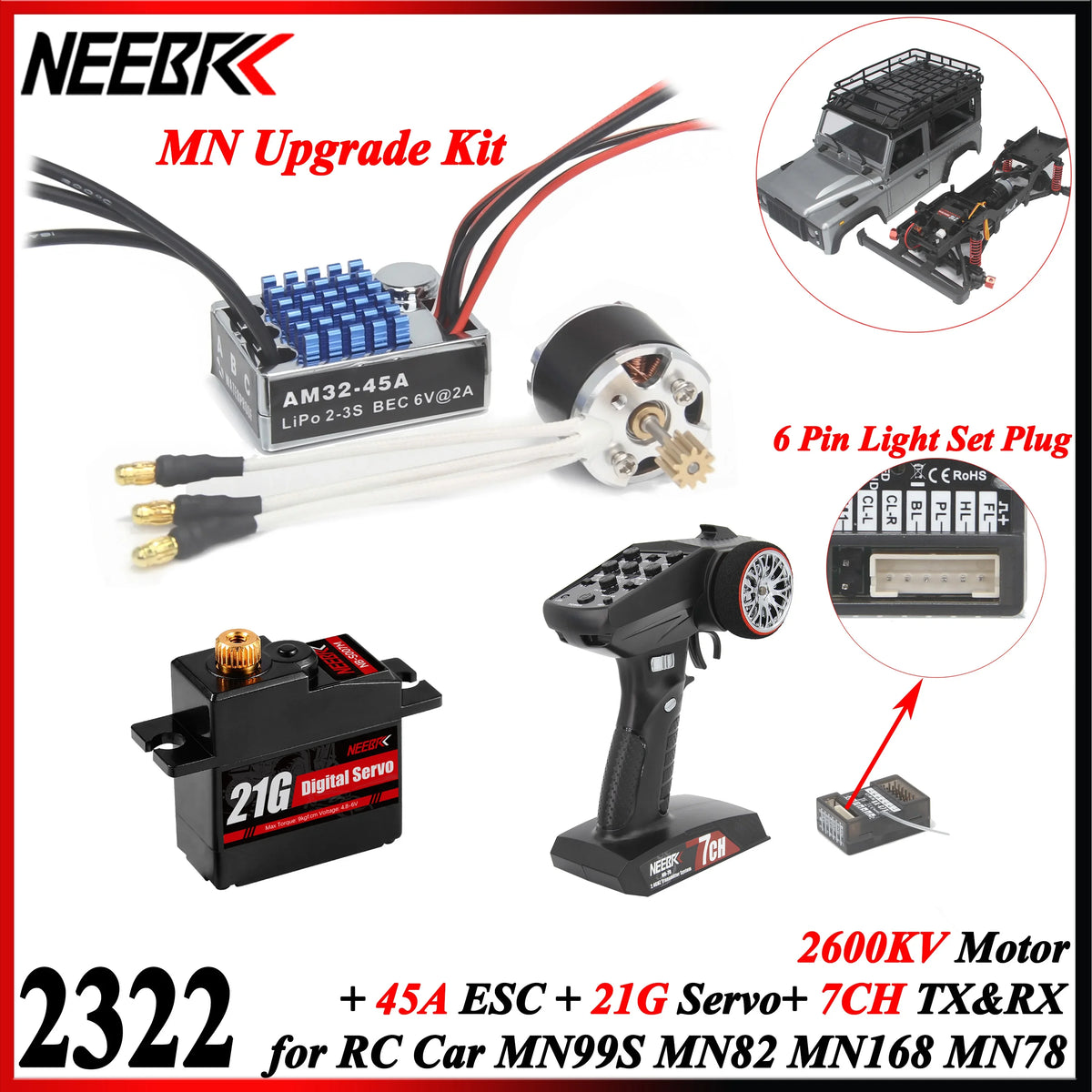

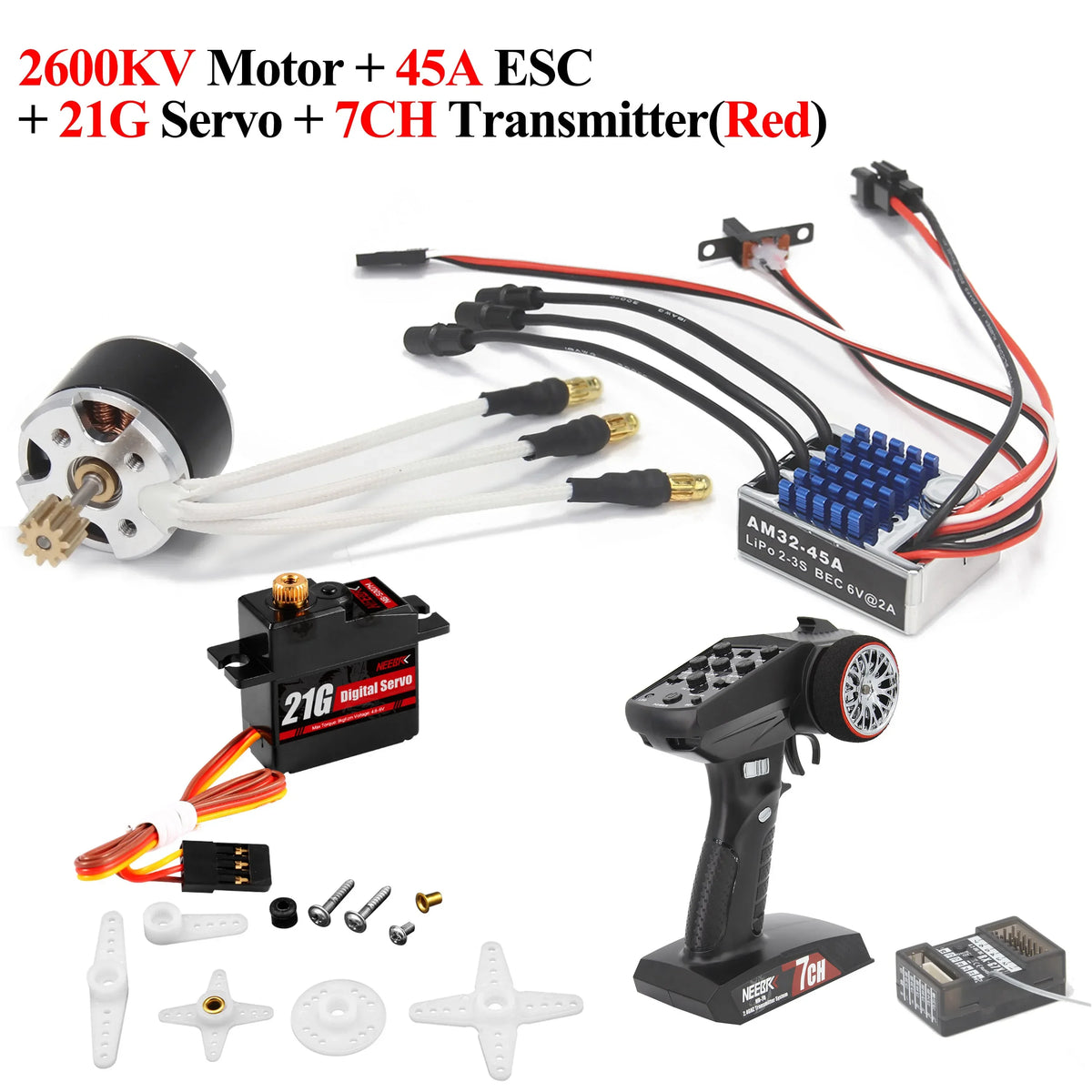

NEEBRC 2322 2600KV Brushless Motor AM32 45A ESC 21g Servo 7CH Transmitter 6 Pin Receiver for 1/12 RC Car Crawler MN99S MN78 MN82

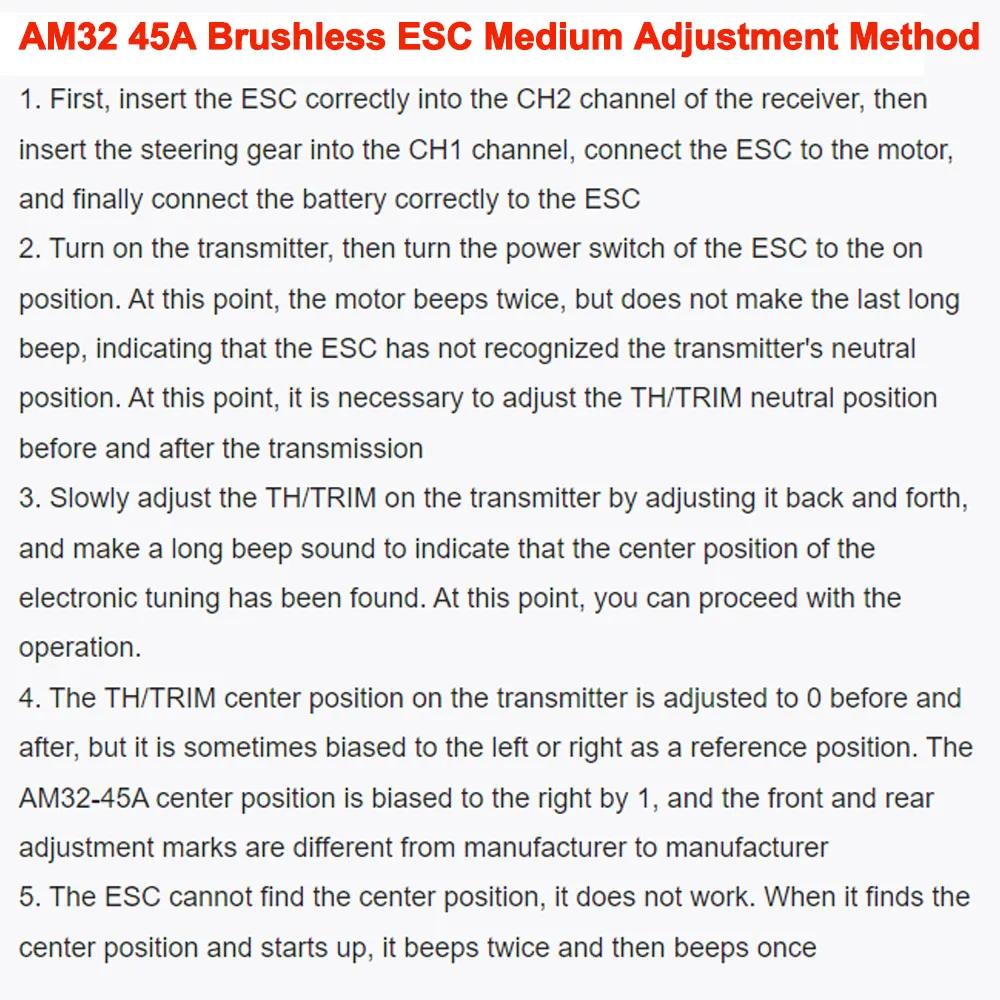

Note: Due to AM32 parameters, if the ESC switch is turned on, the motor will only make two drops without a long drop. It is not that the motor does not work, but that the ESC switch does not recognize the central position of the remote controller. It is necessary to fine tune the TH/TRIM central position. It can be operated when a long drop sound is made when adjusting back and forth.

Features:

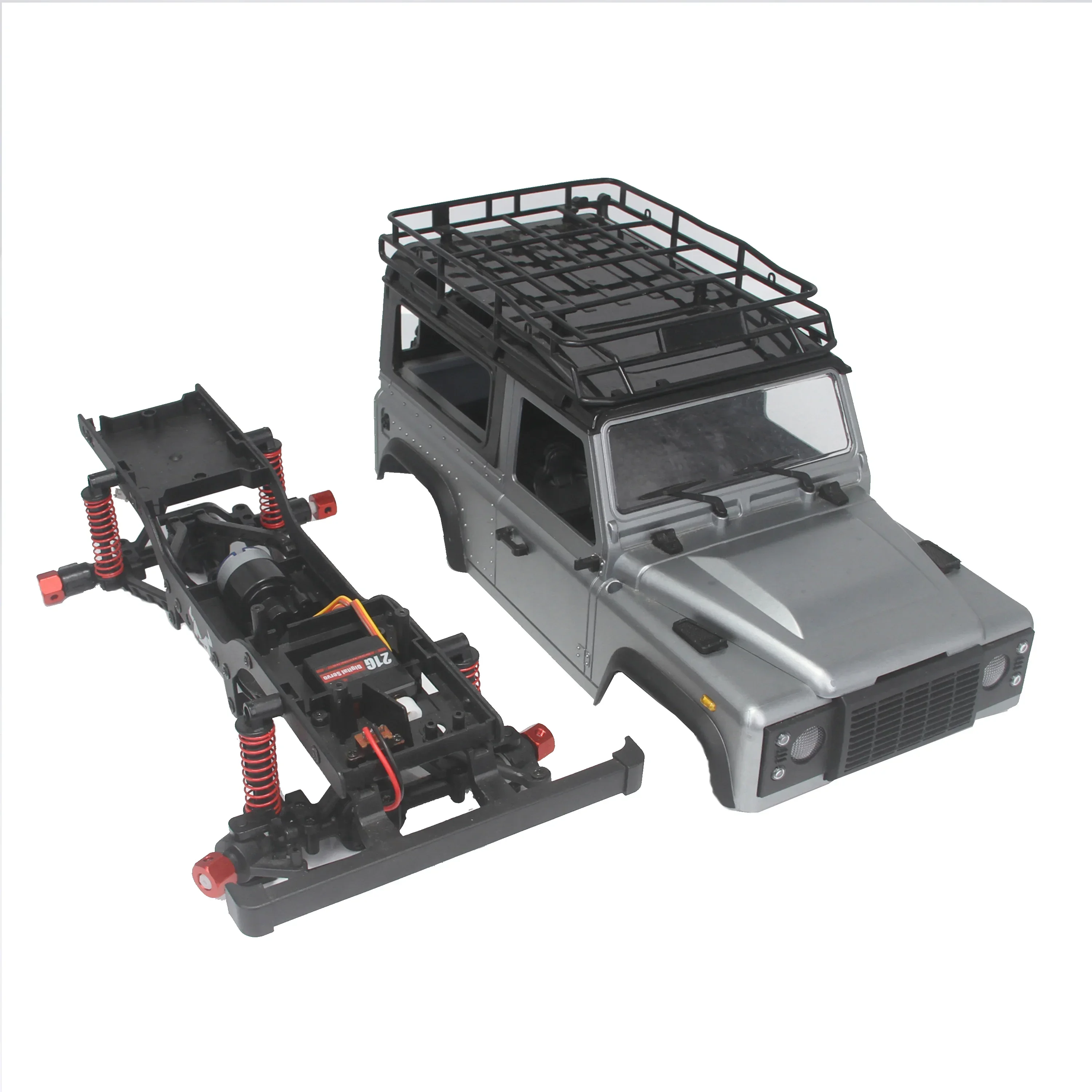

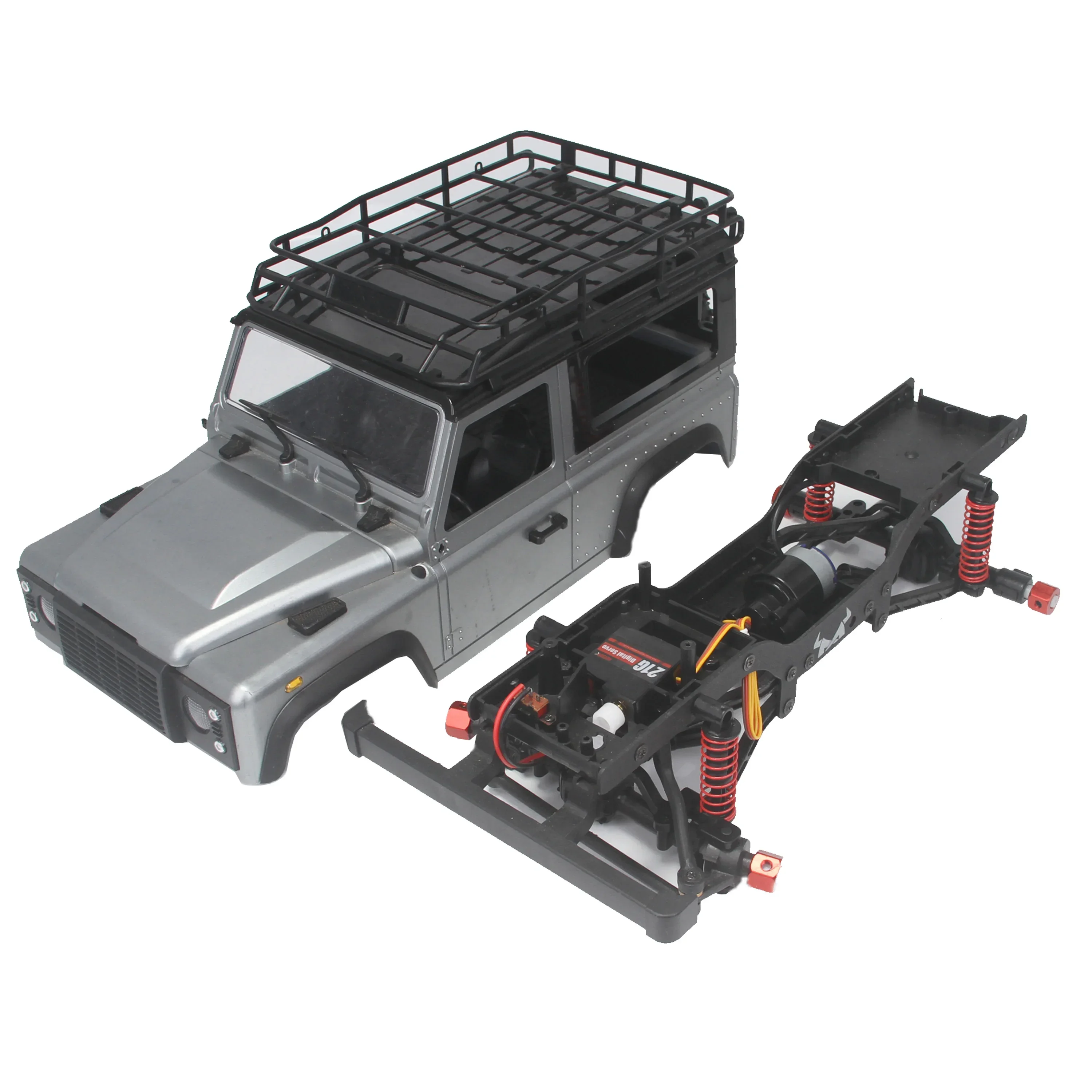

Applicable vehicle models: MN82 MN99S MN168 MN78

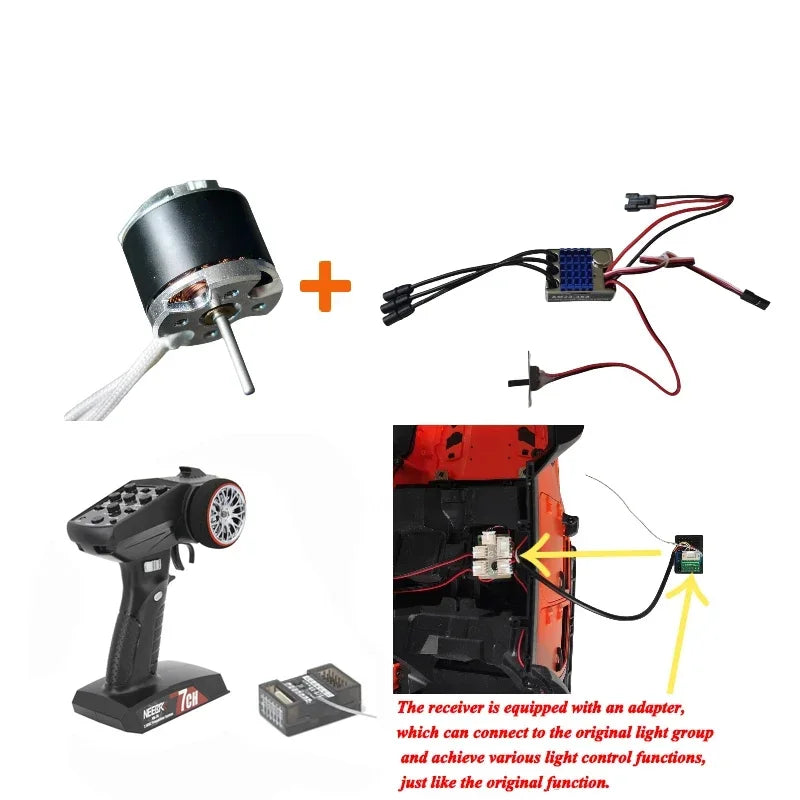

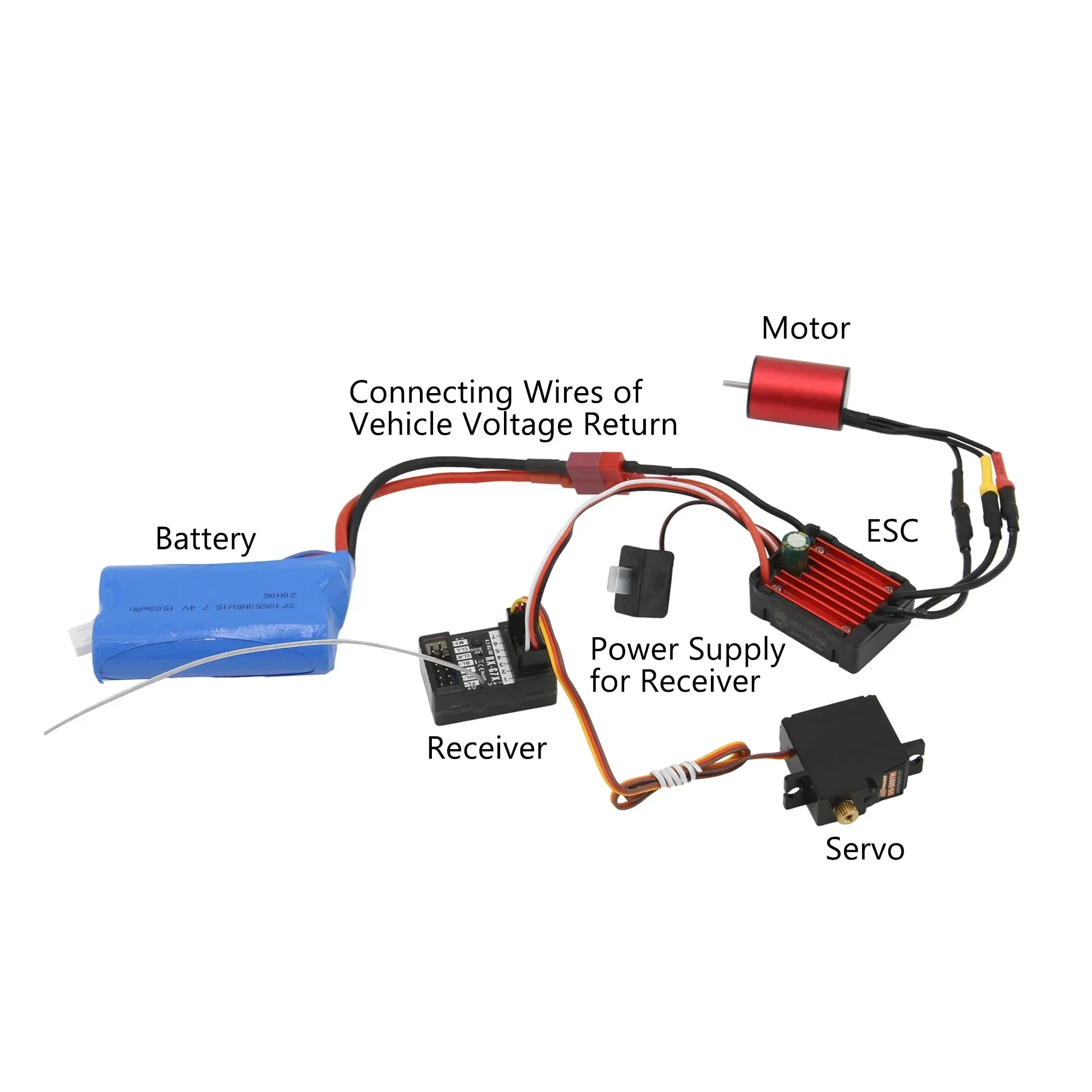

The receiver has been upgraded and does not require a light control adapter. It can be directly plugged in, perfectly adapting to the MN series models.

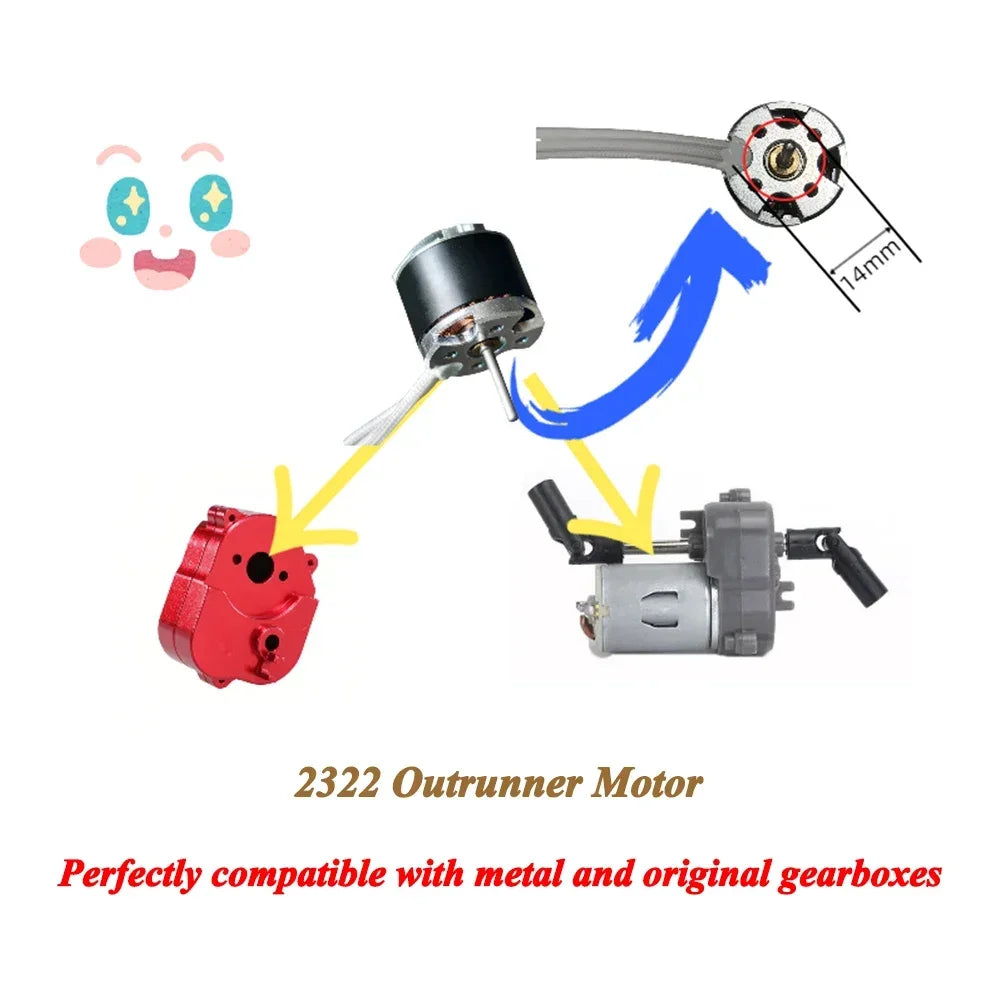

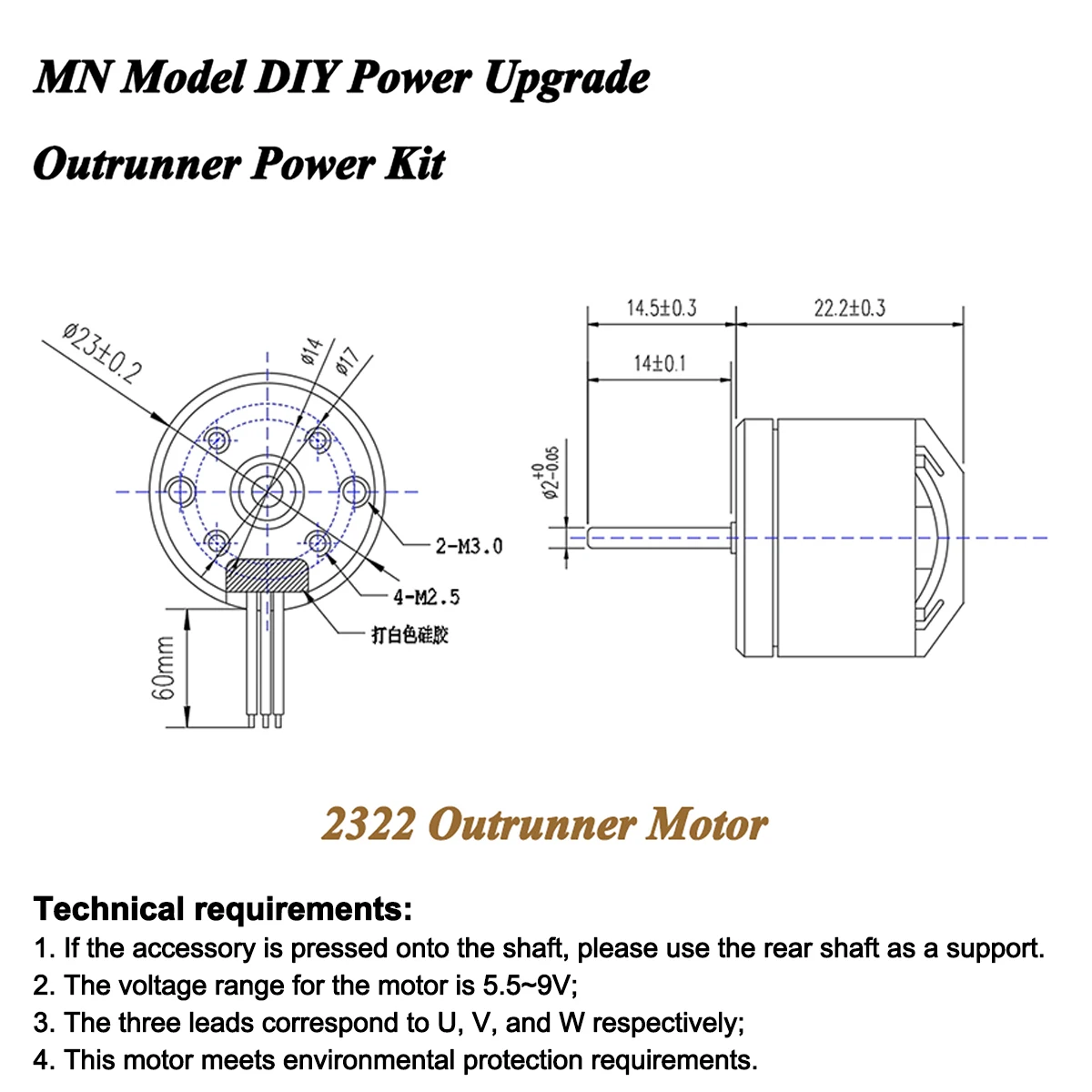

Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power

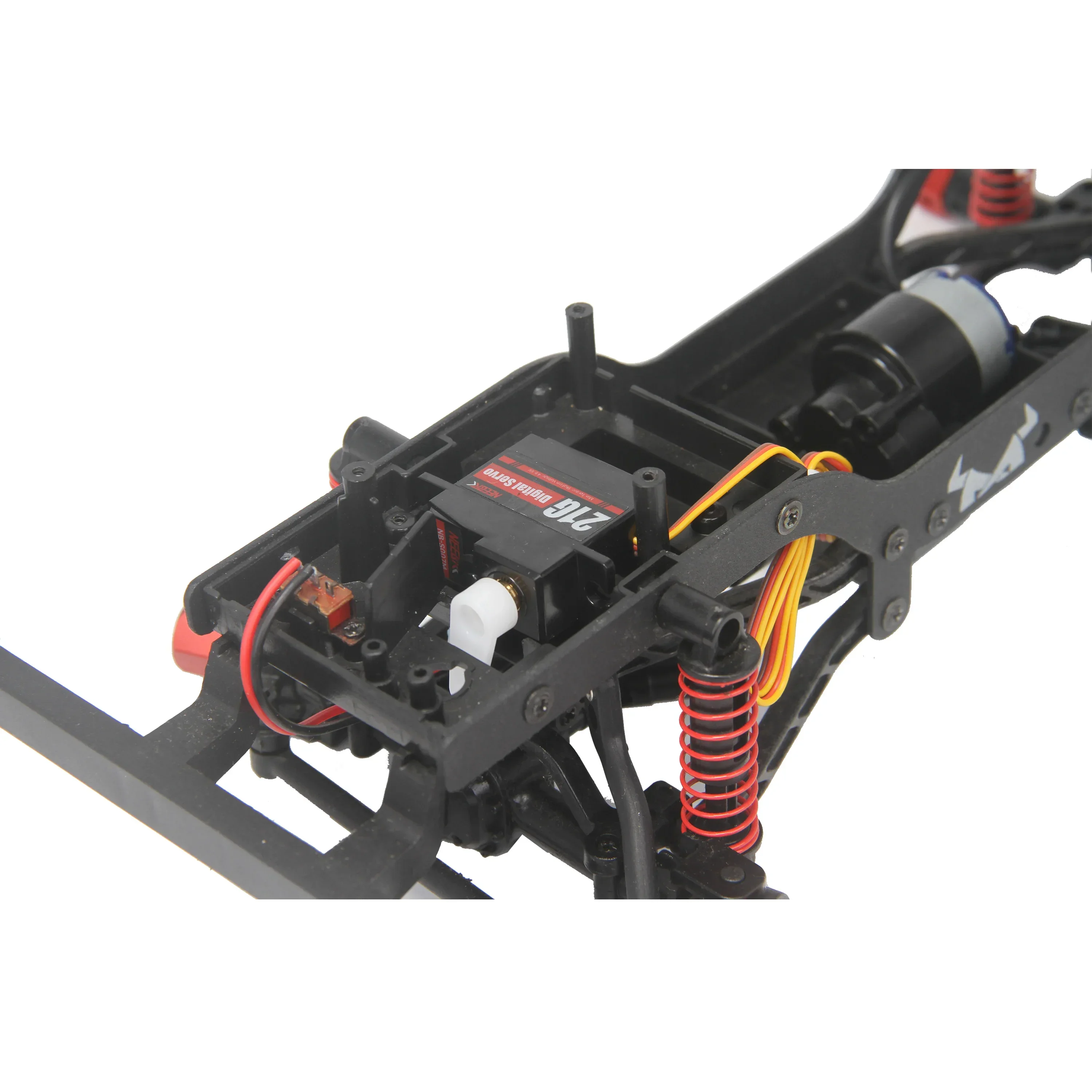

No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb

Specification:

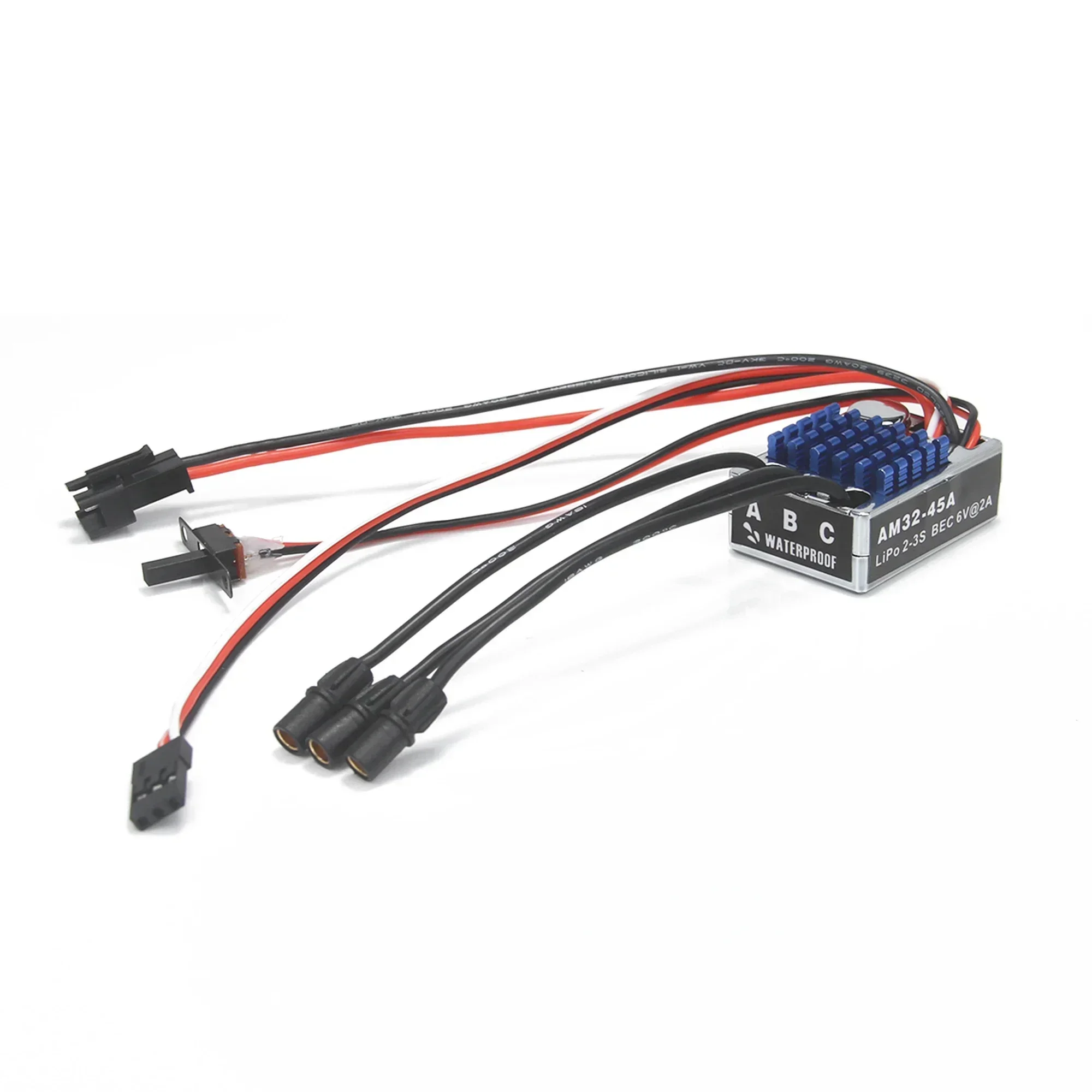

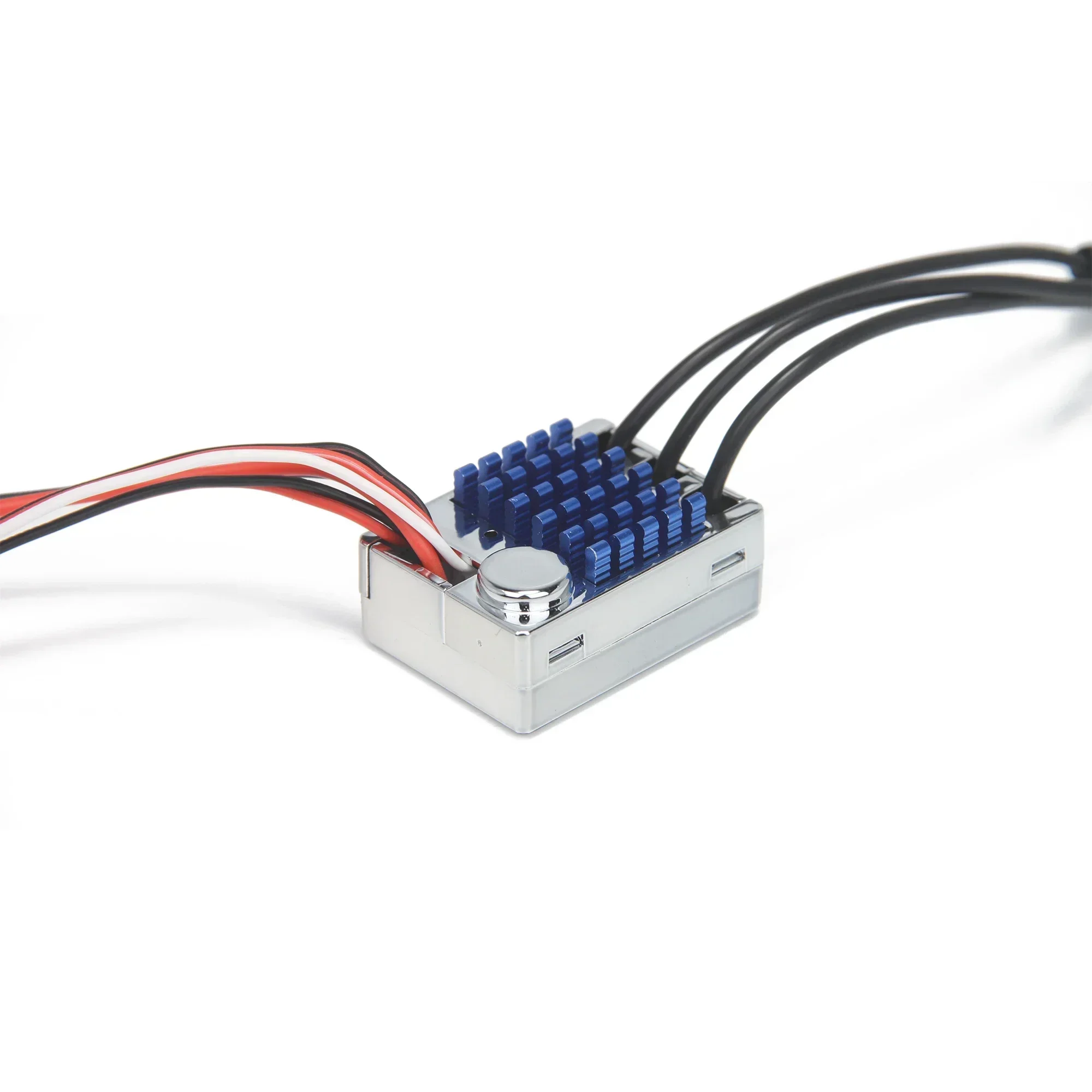

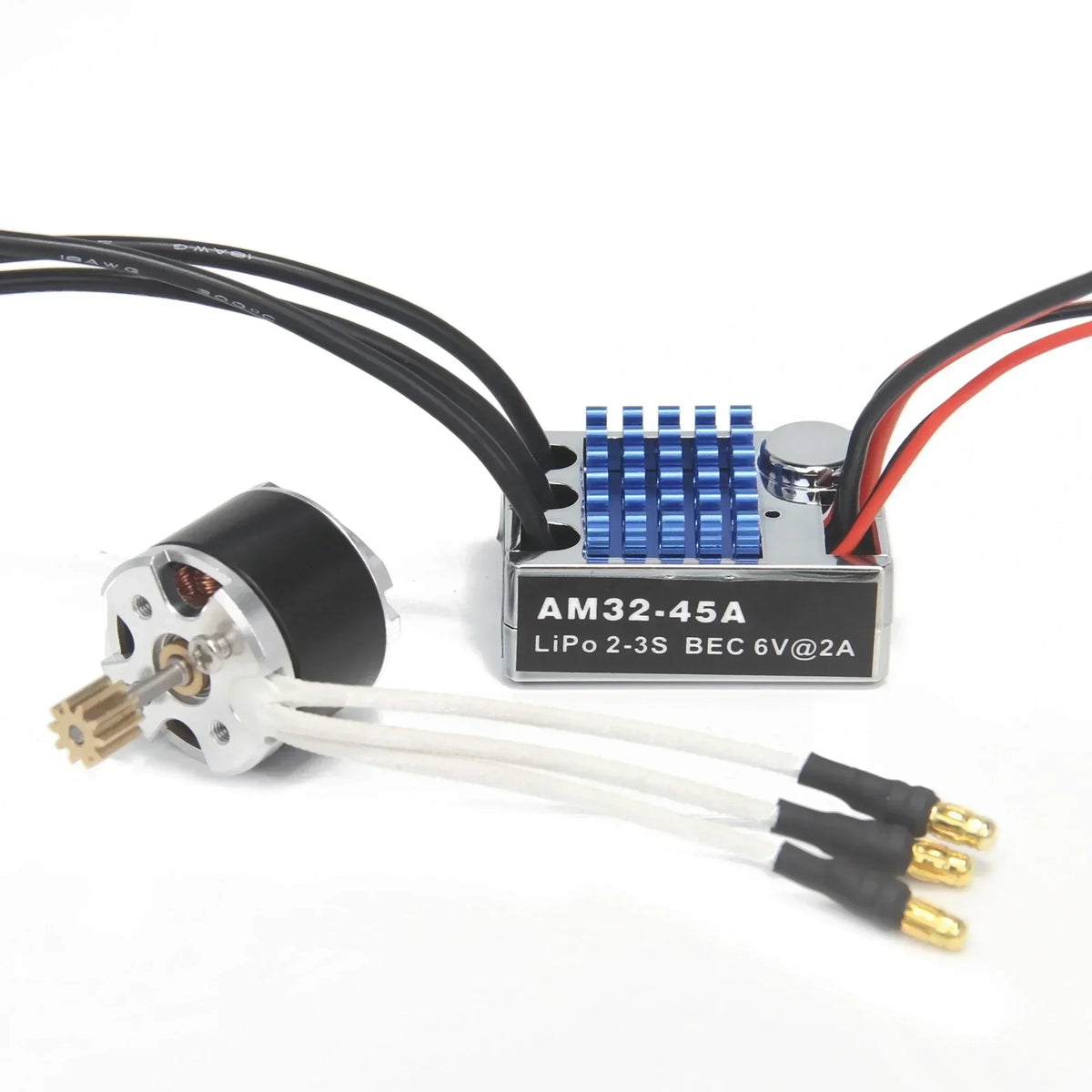

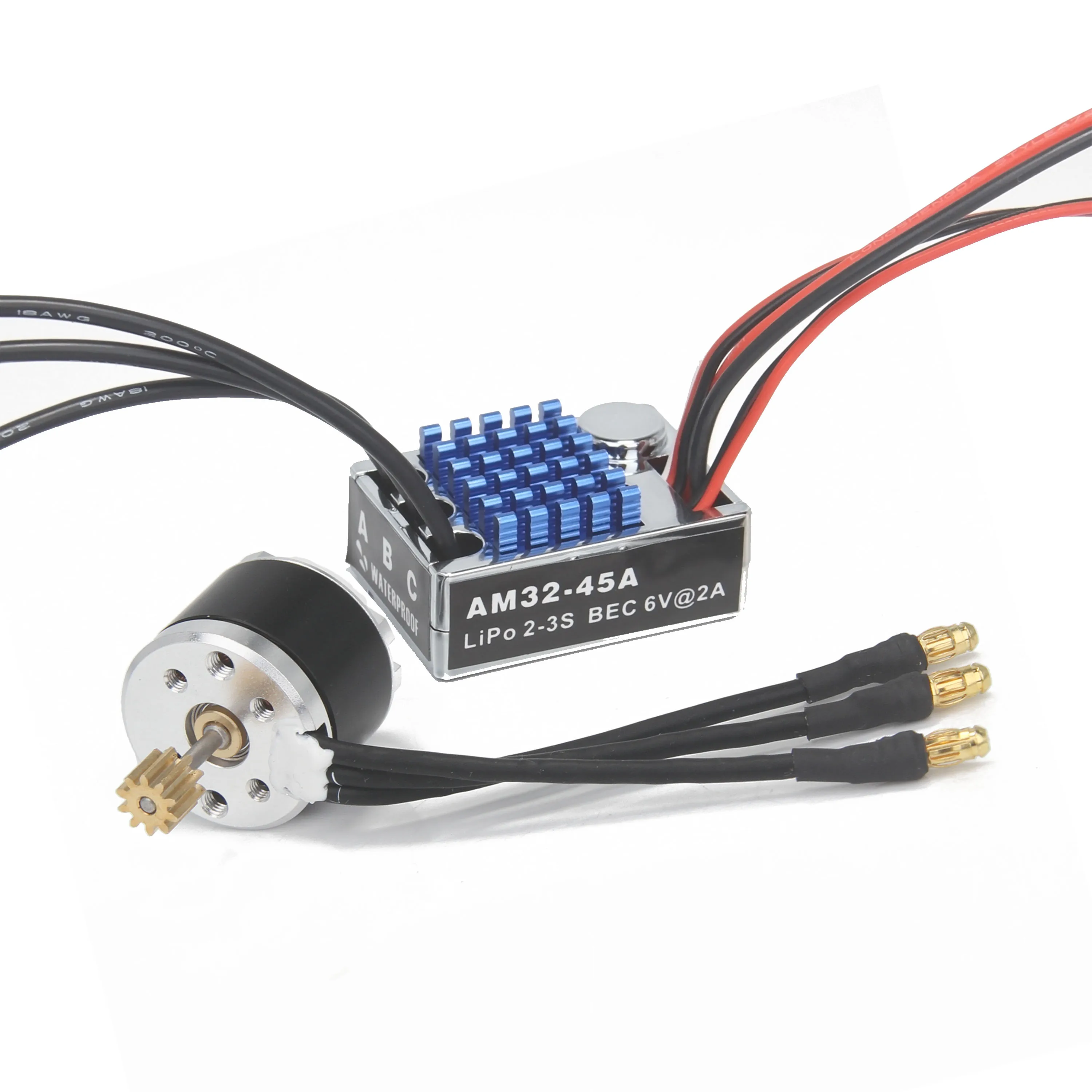

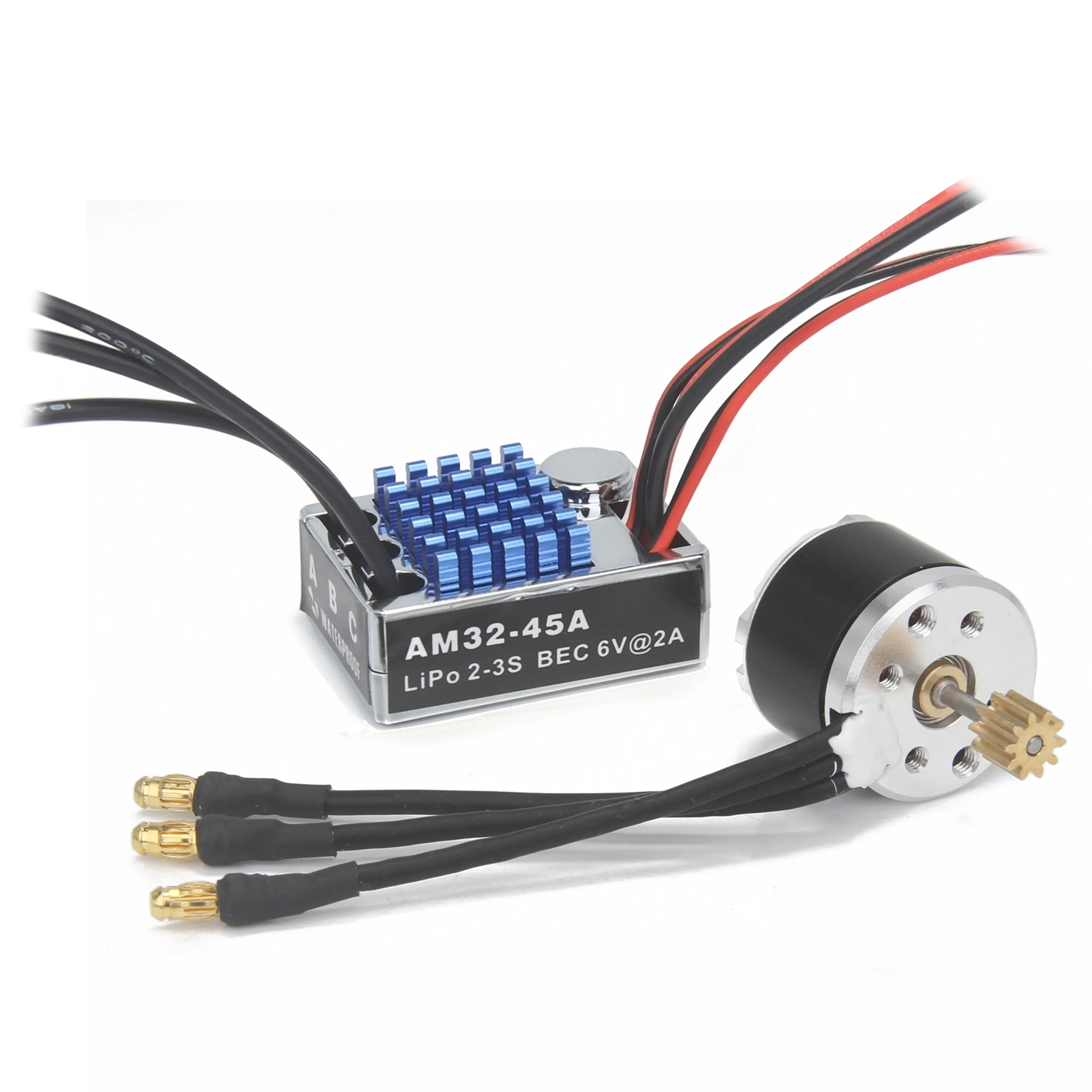

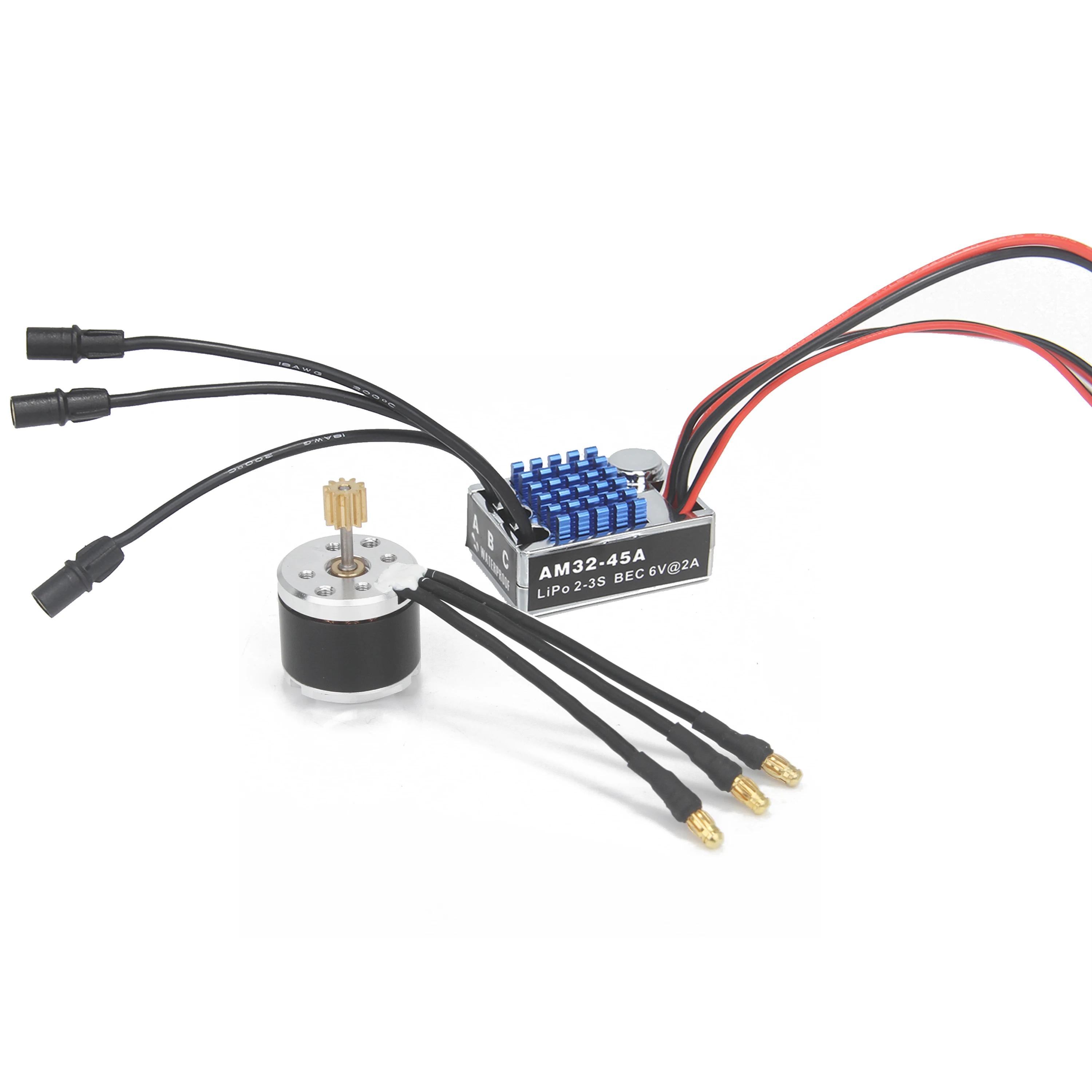

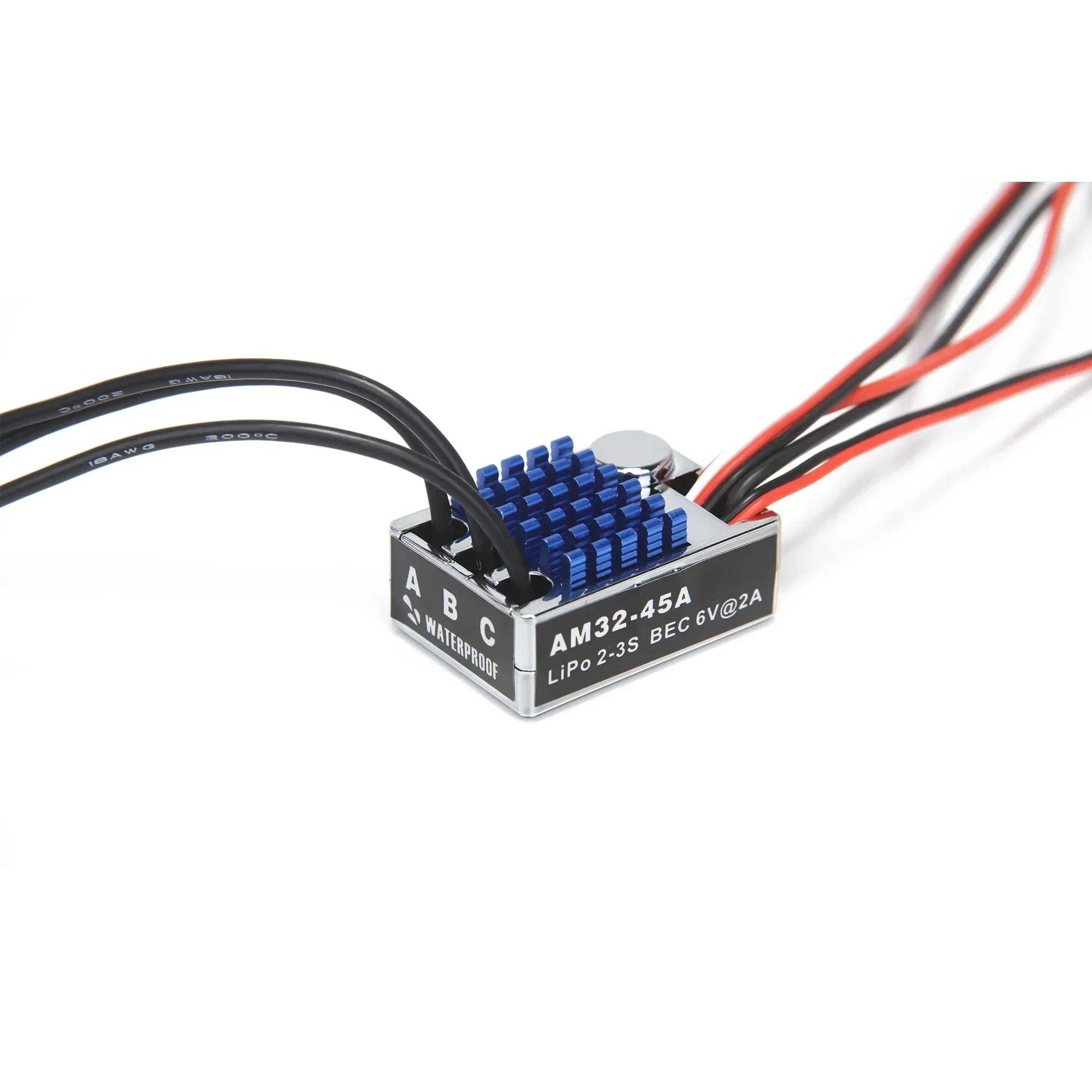

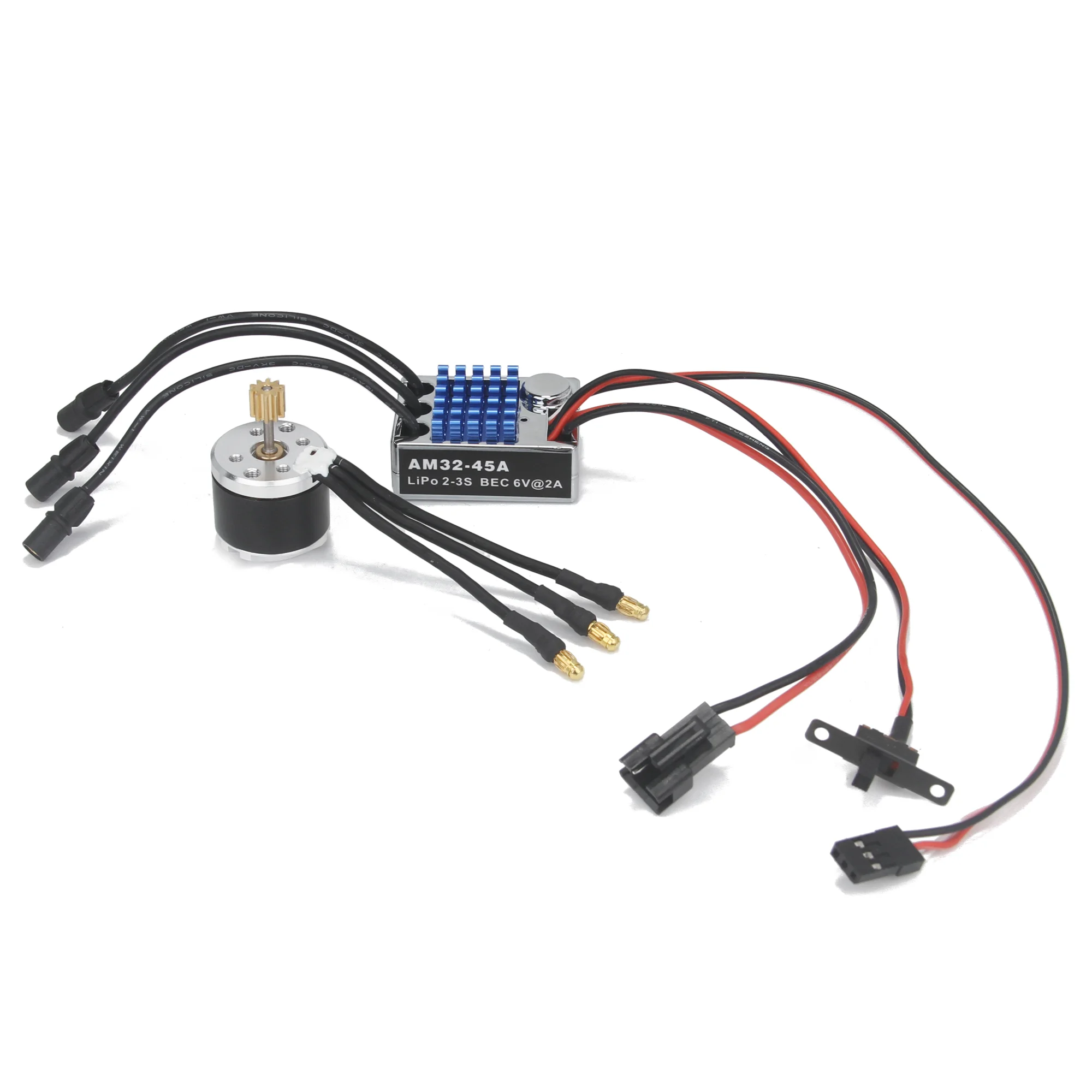

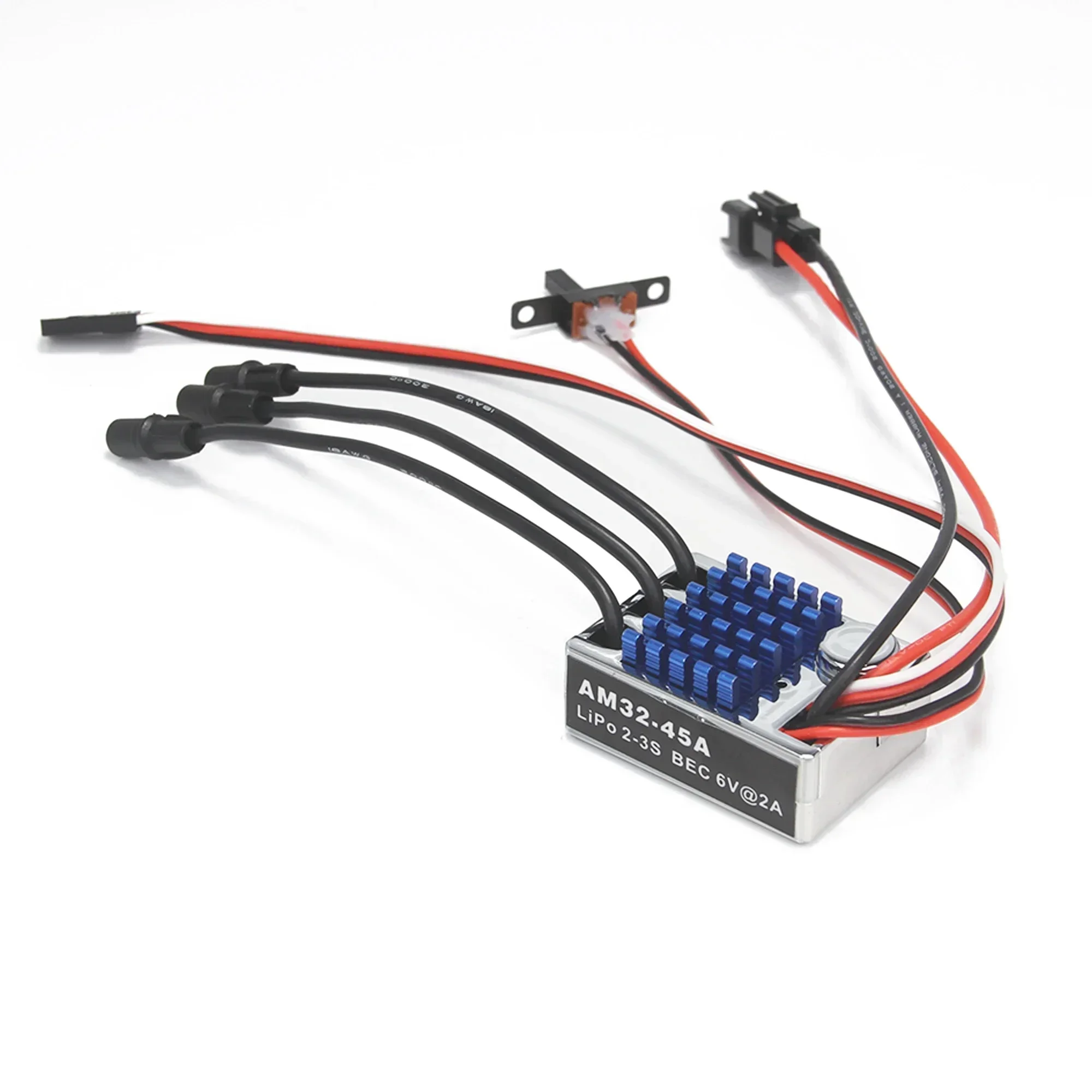

AM32 45A ESC Specification:
1.Voltage:7.4-11.1V
2.Lipo:2S
3.Battery Connector:SM3.0
4.Compatible motor:2322 2600KV
5.Size:38.5*28*18.5mm
6.Suitable car: MN82 MN99S MN168 MN78
7.Case Material: Plastic

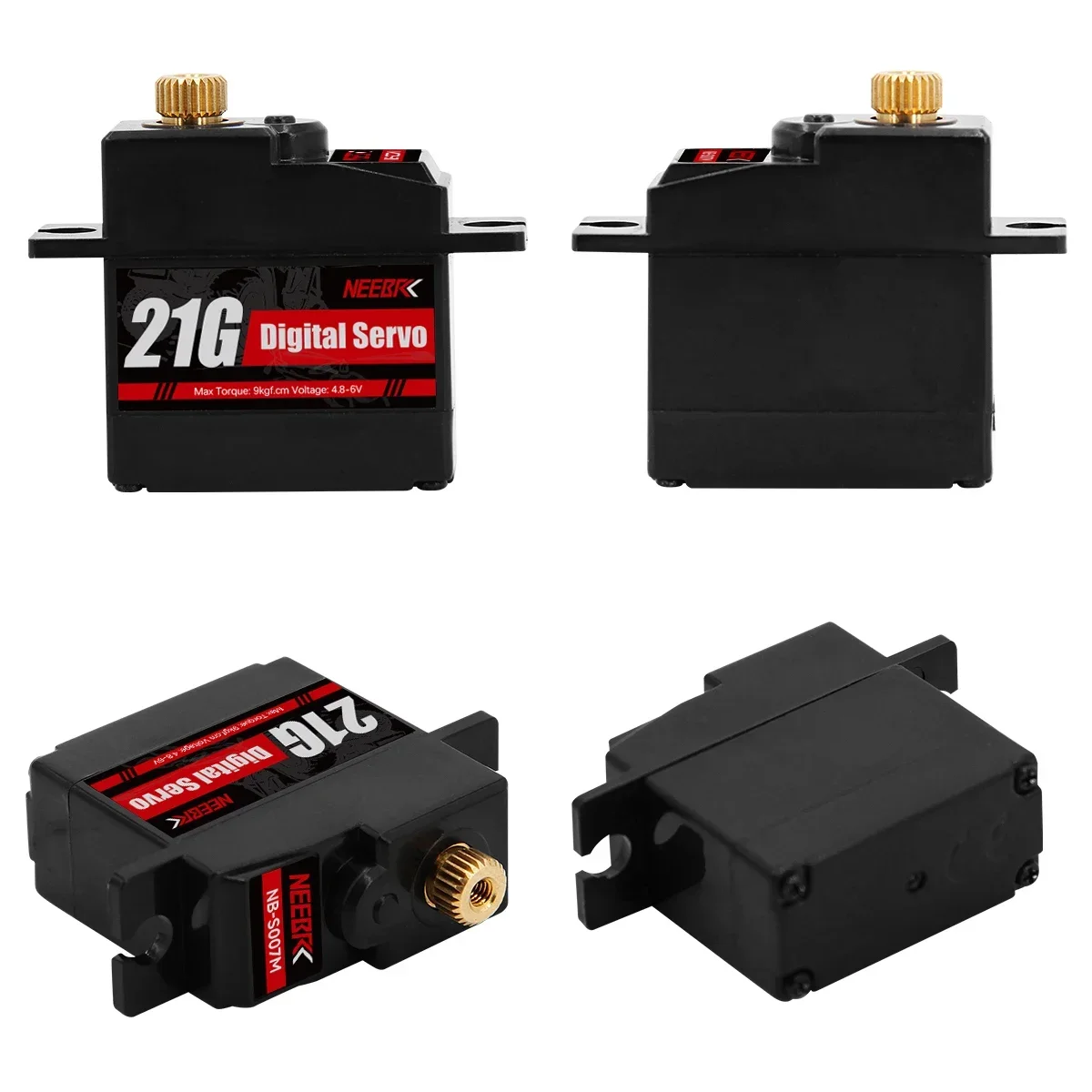

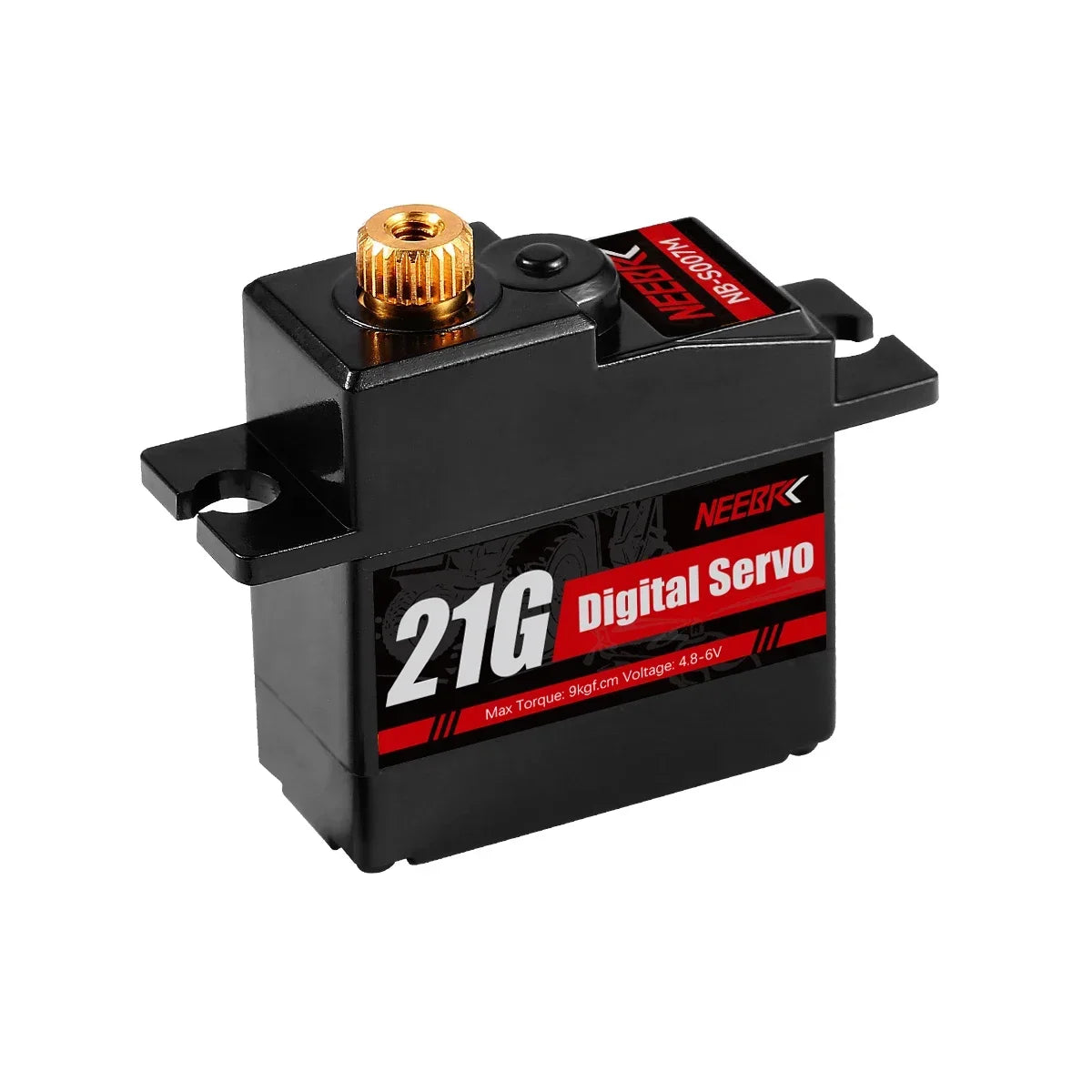

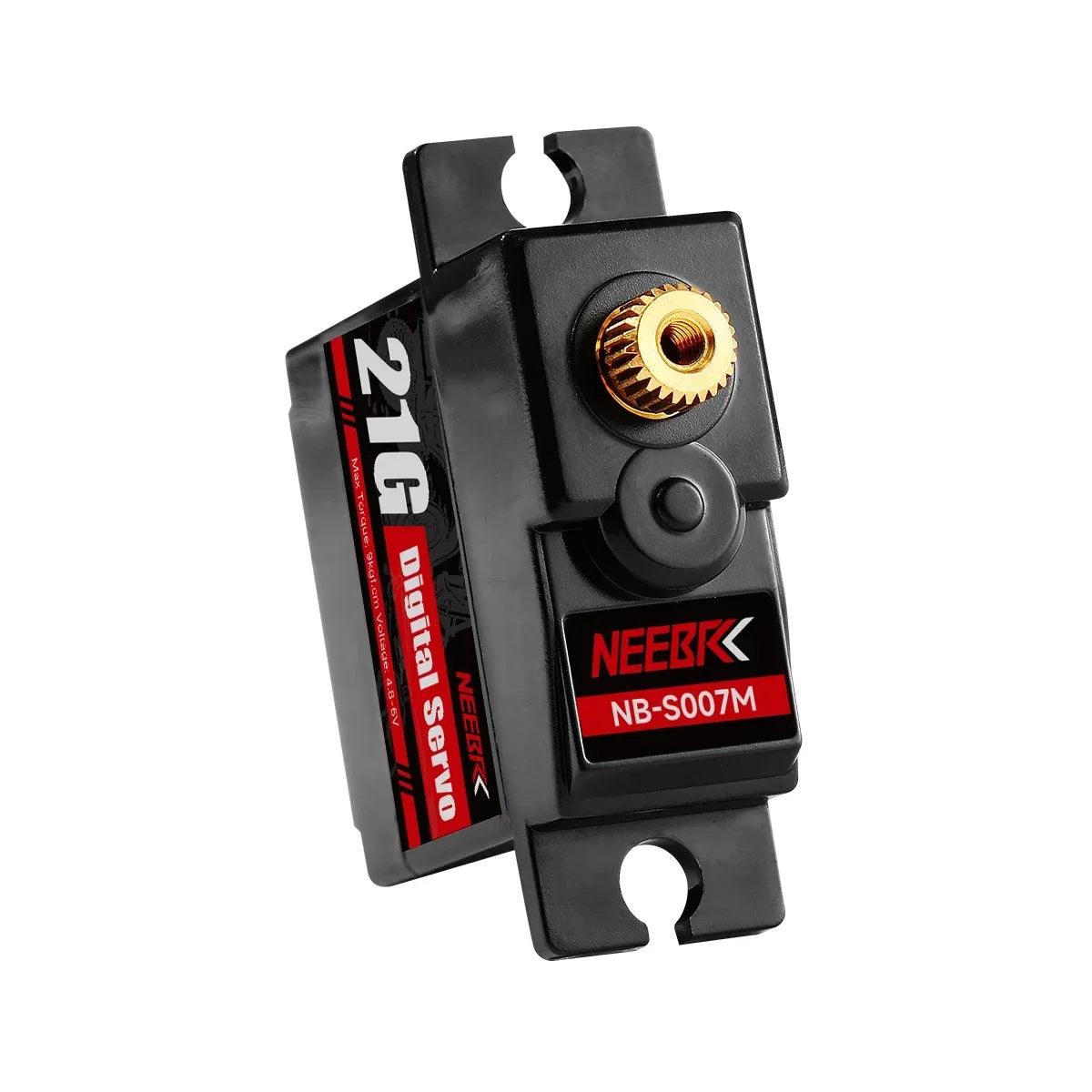

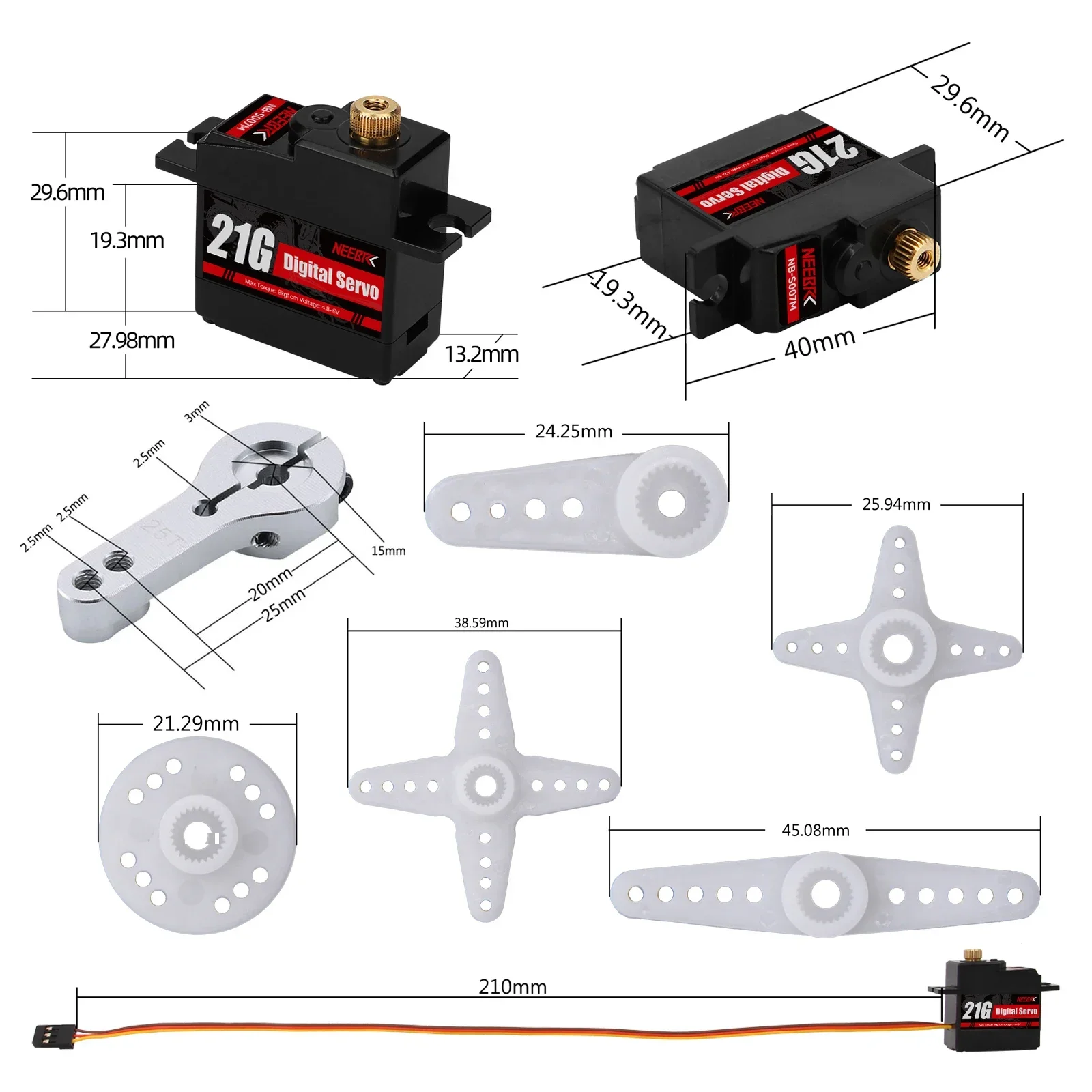

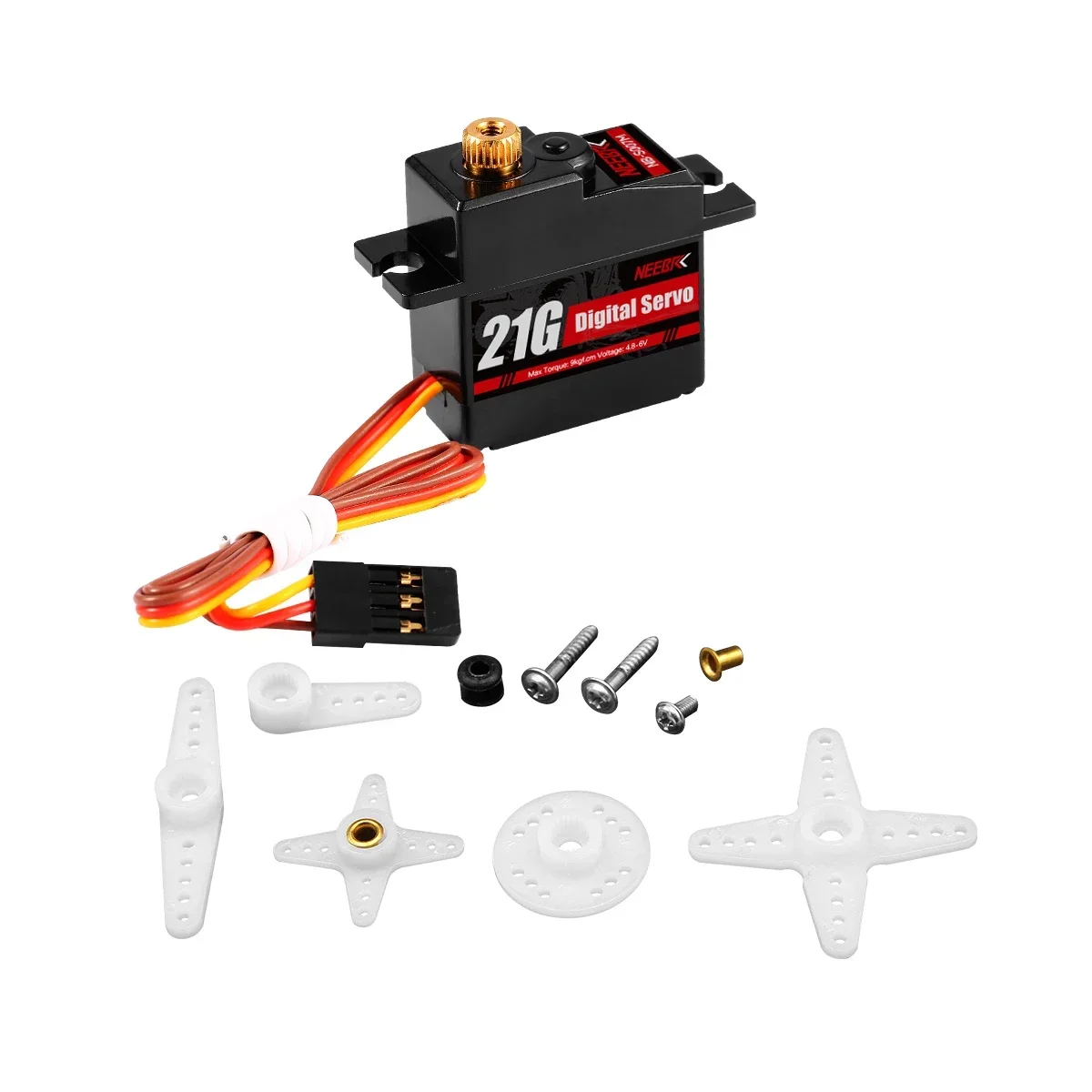

21g Servo S007M Specification:

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

Specifications:

Item name: NEEBRC NB-S007M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 9kgf·cm

No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°

Stall Current:4.8V≦1500mA;6.0V≦1800mA

Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA

Max. Operating Travel Angle:180°±10°(500-2500μs)

Dead Band Width: ≤ 1us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Metal gear

Horn Gear Spline: 25T/Φ5.77

Weight: 20.7 g

Size: 29.6 × 13.2 × 40mm

Length of Connector cable: JR 250±5mm (exposed without plug)

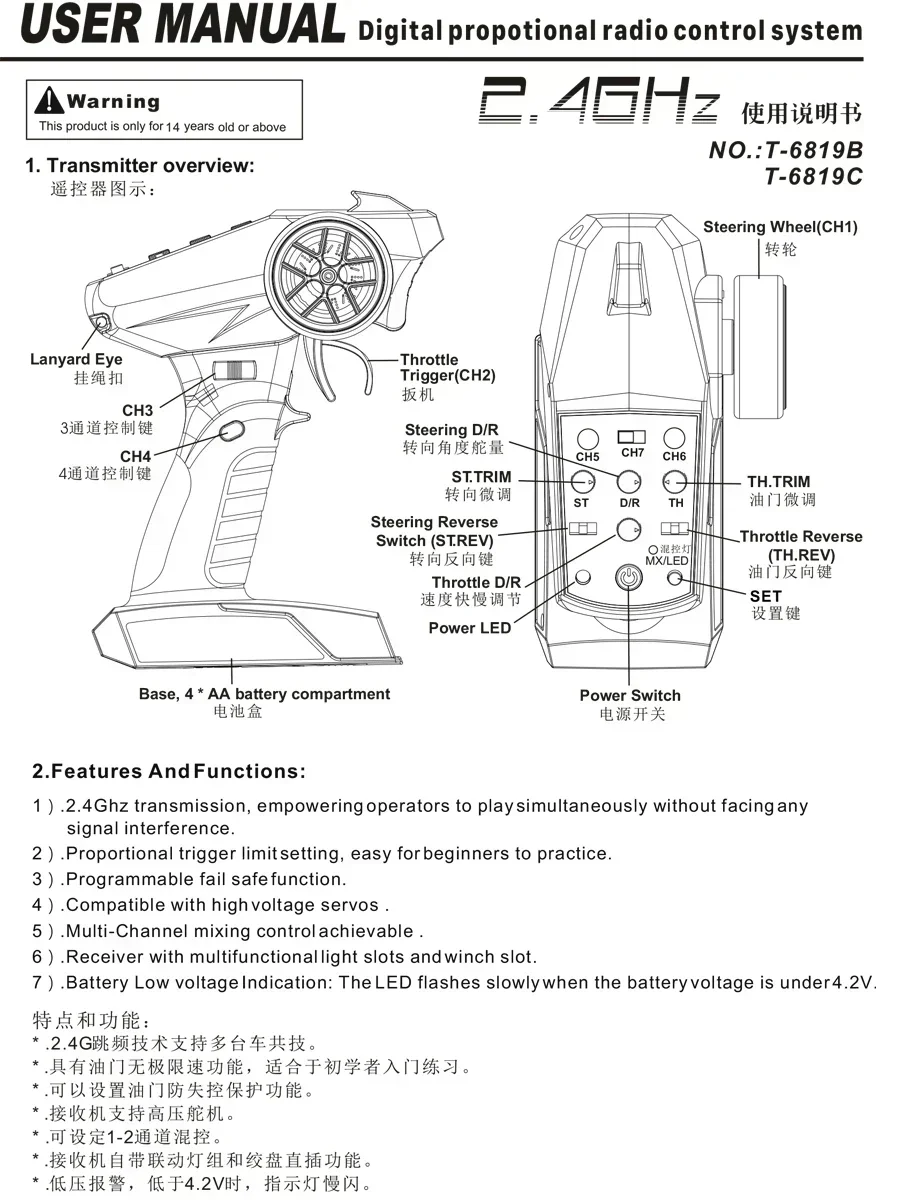

7CH Transmitter&Receiver:

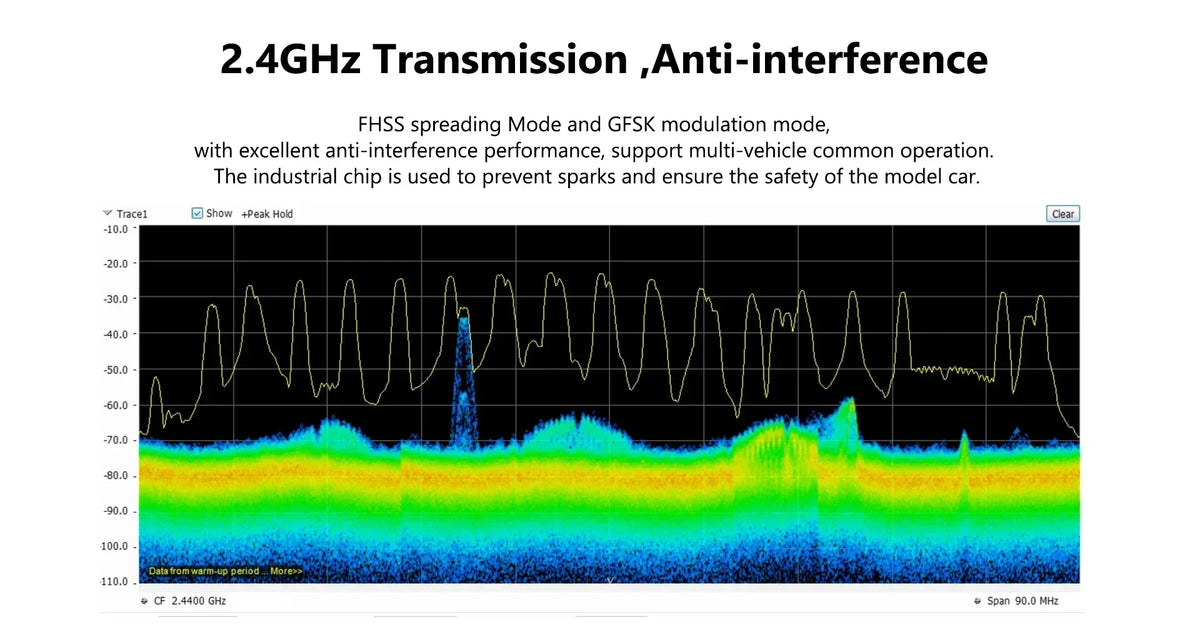

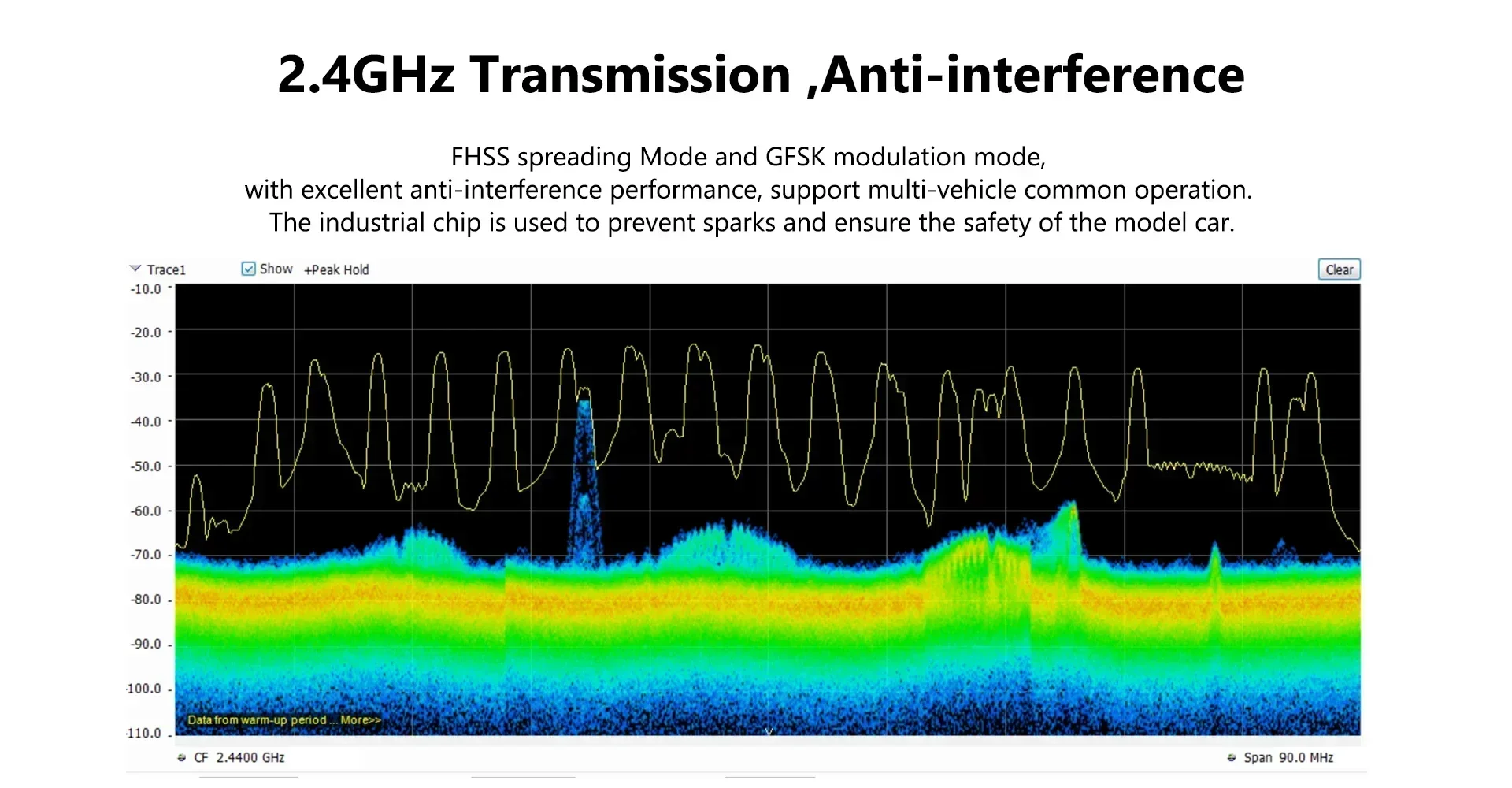

• 2.4Ghz transmission, empowering operators to play simultaneously without facing any signal interference.

• Proportional trigger limit setting, easy for beginners to practice.

• Programmable fail safe function.

• Compatible with high voltage servos .

• Multi-Channel mixing control achievable .

• Receiver with multifunctional light slots and winch slot.

• Battery Low voltage Indication: The LED flashes slowly when the battery voltage is under 4.2V.

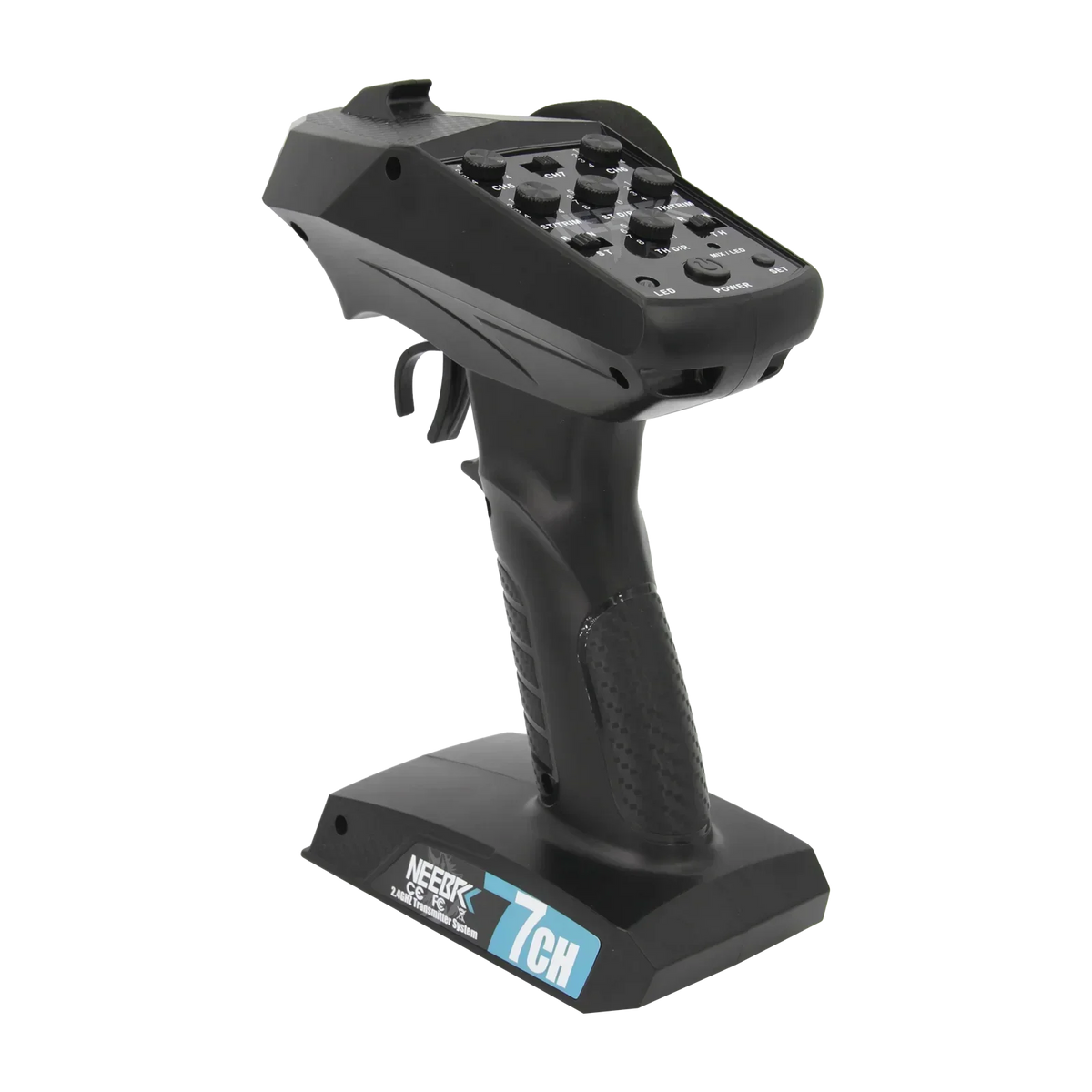

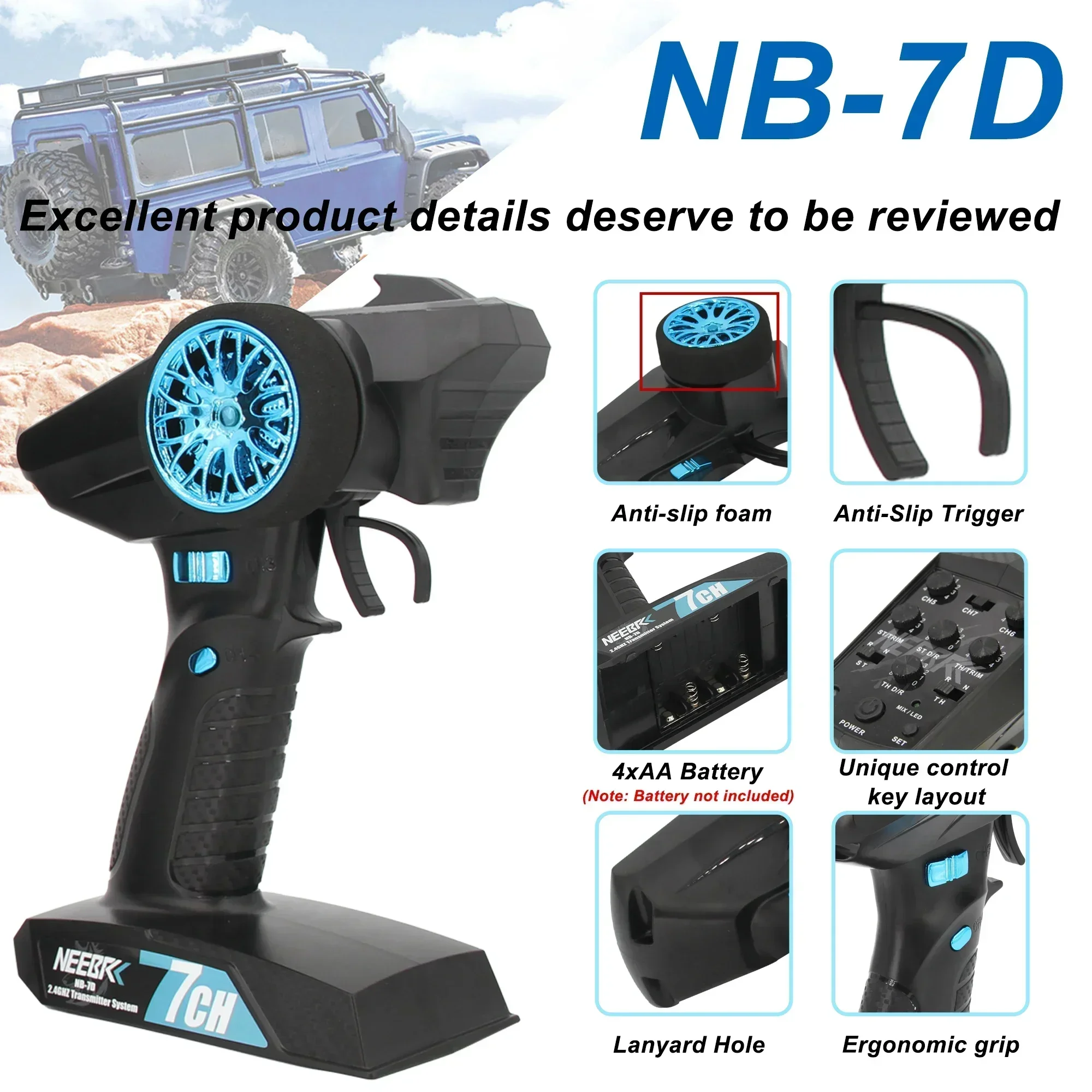

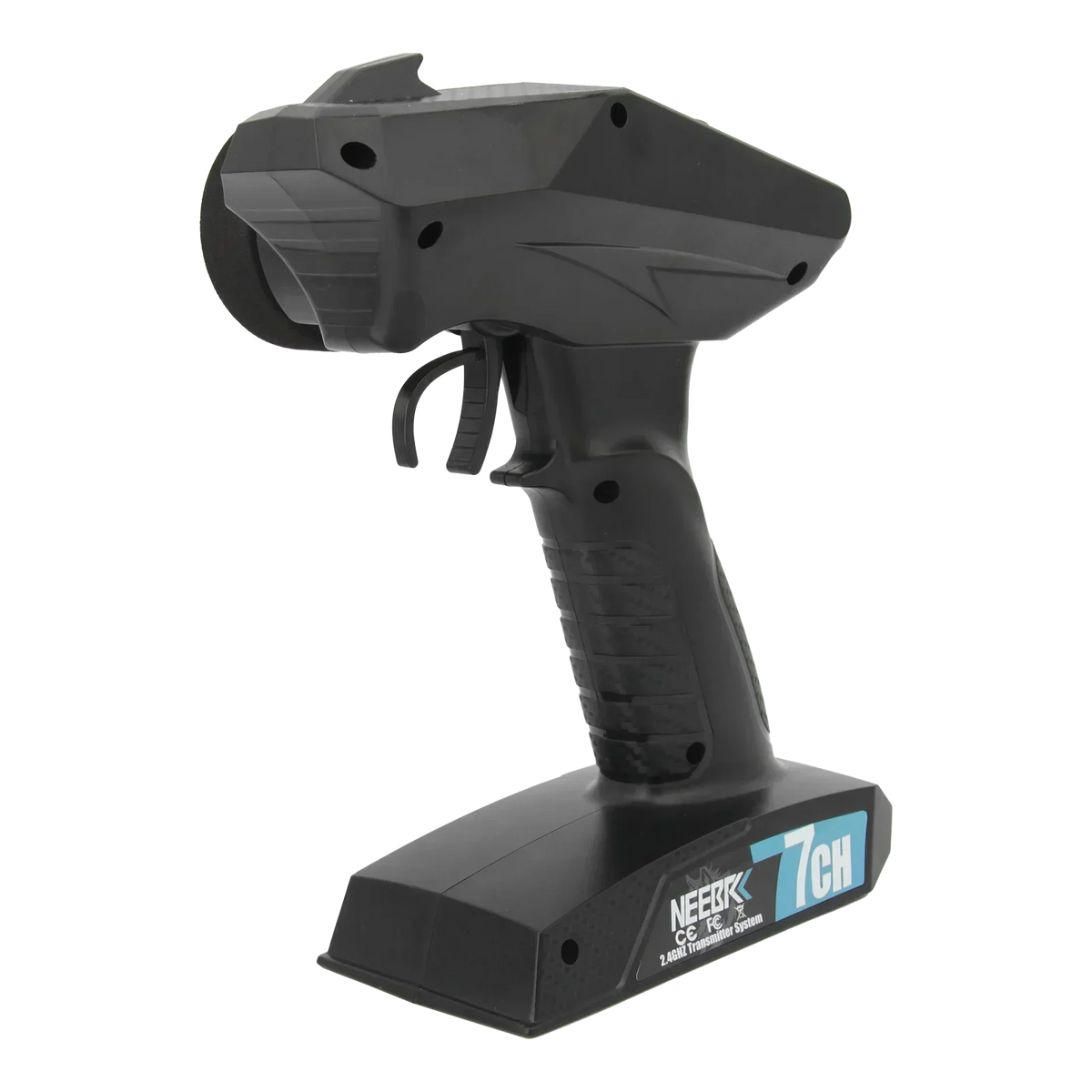

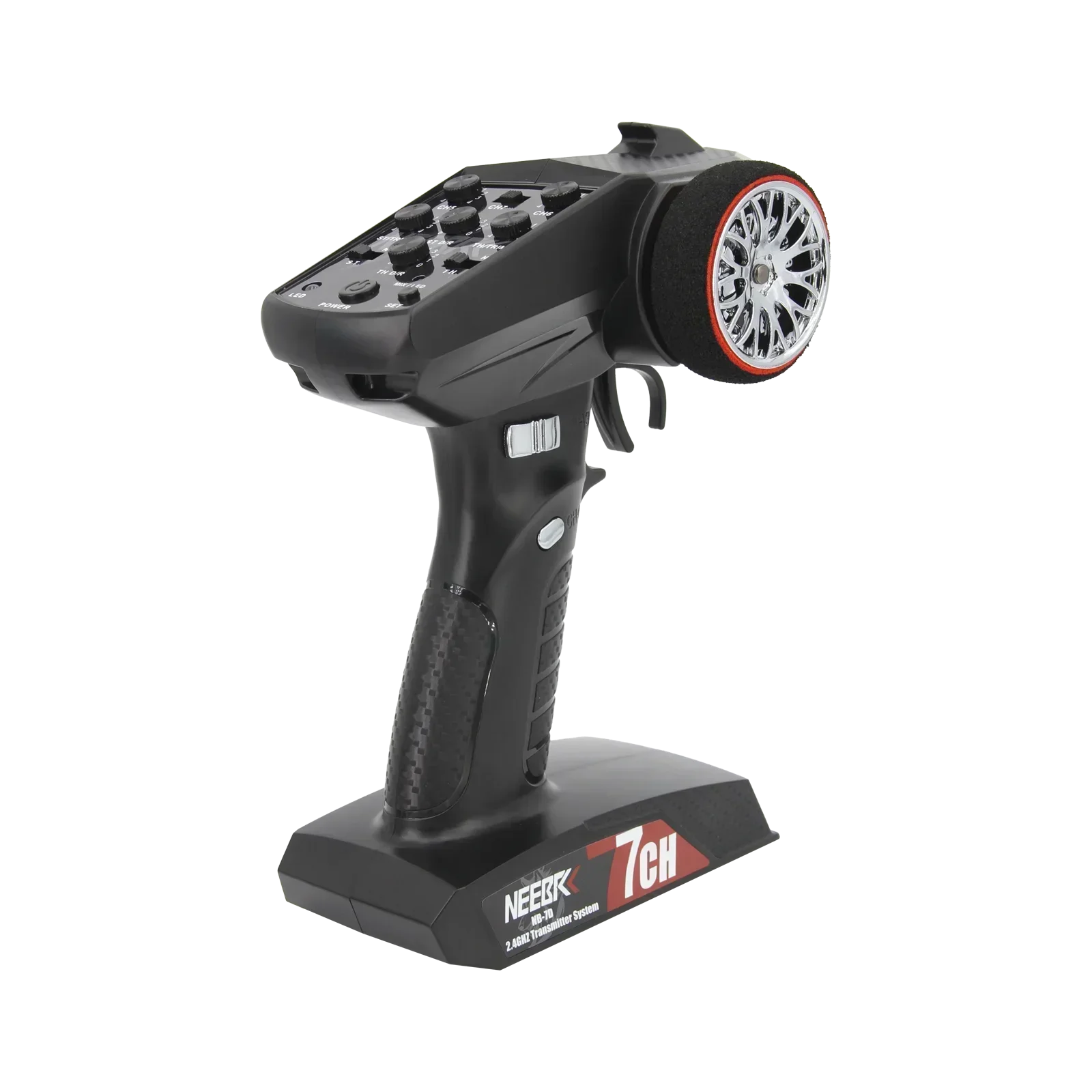

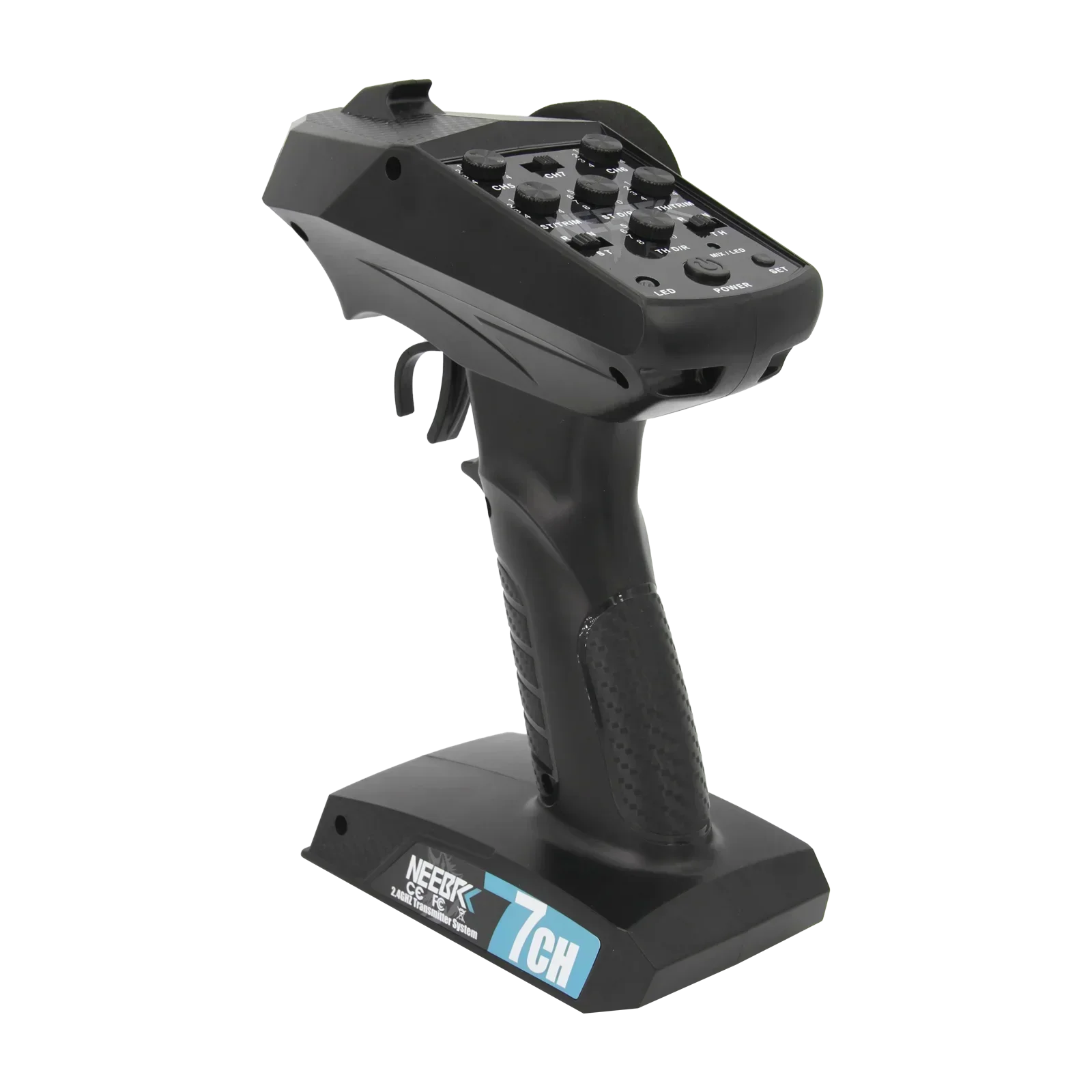

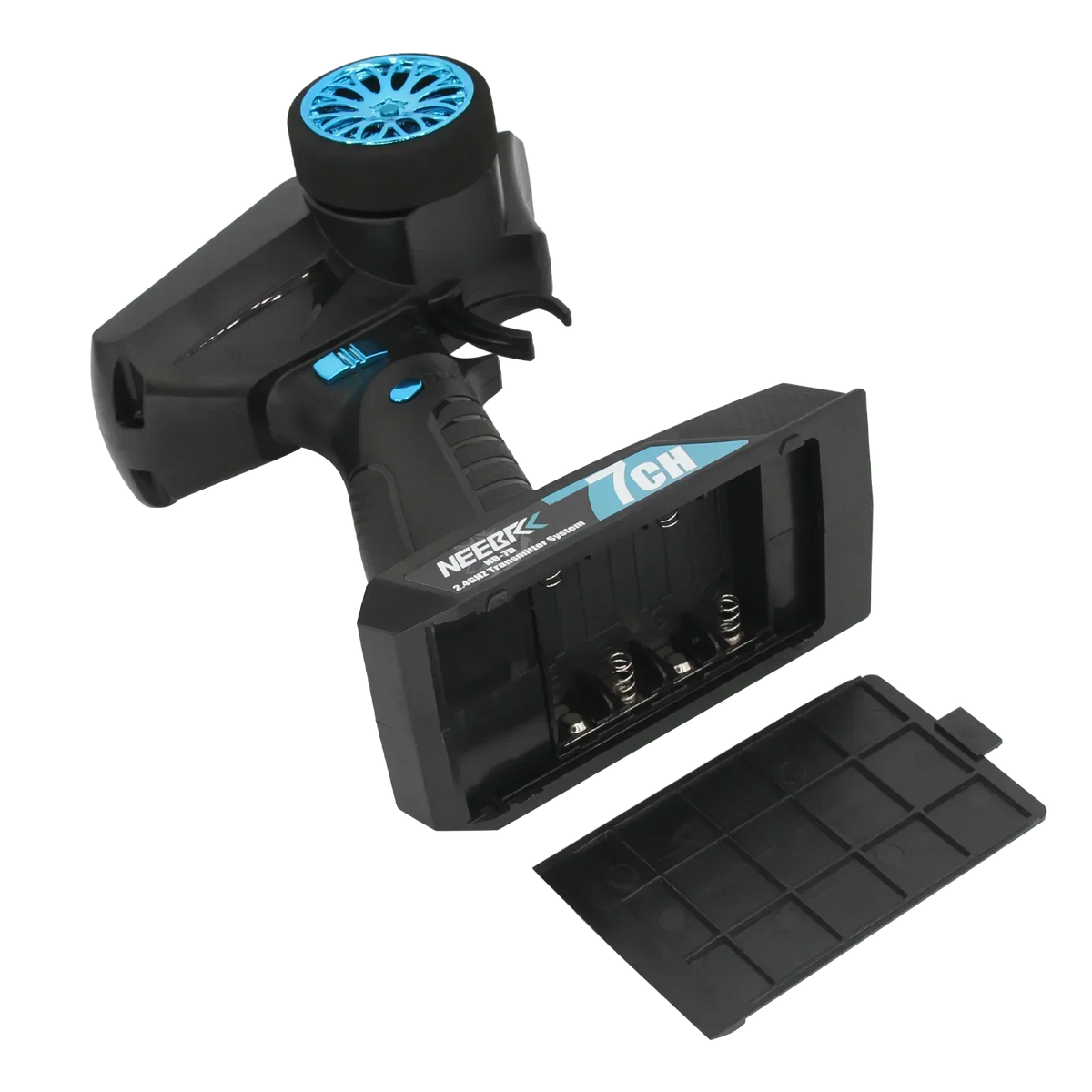

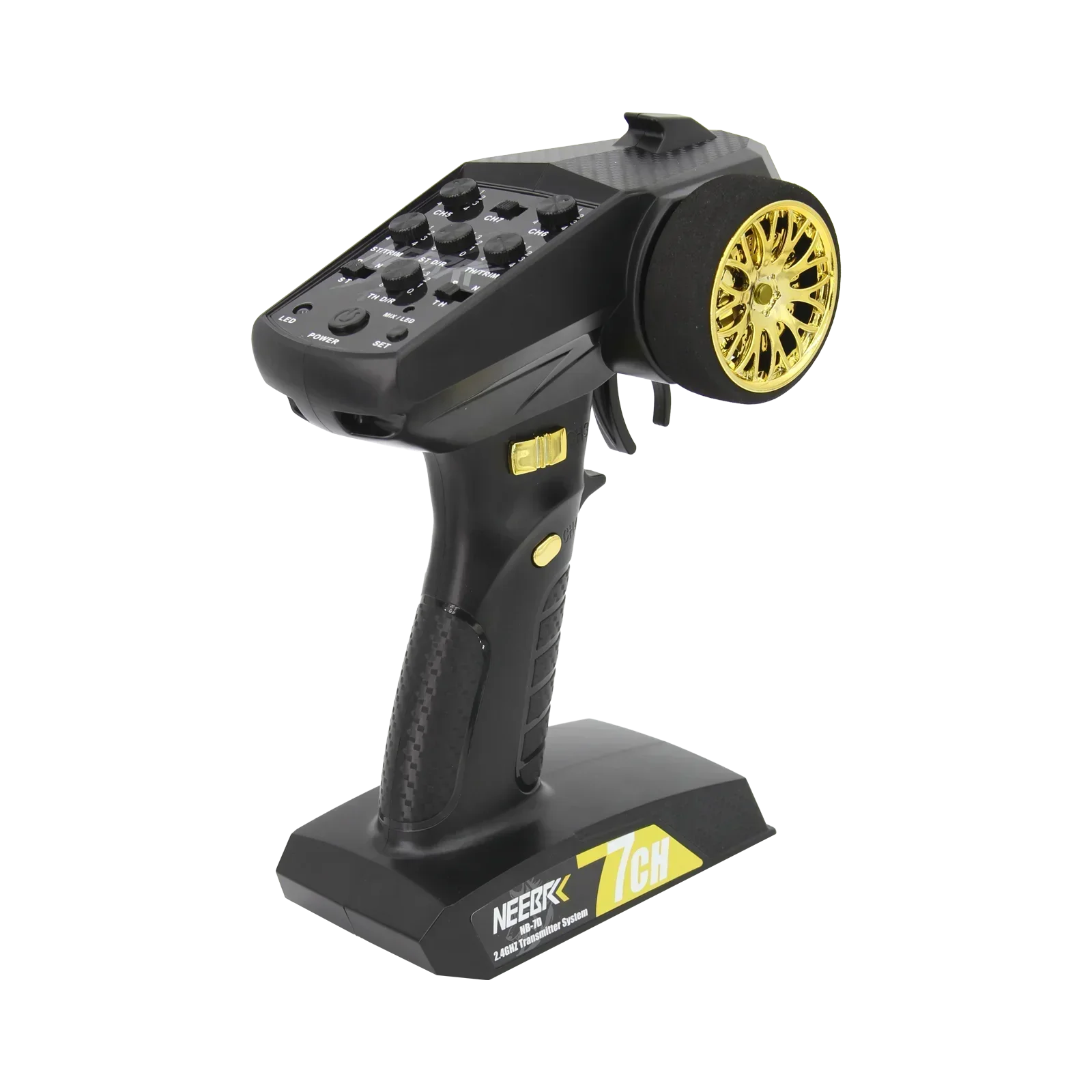

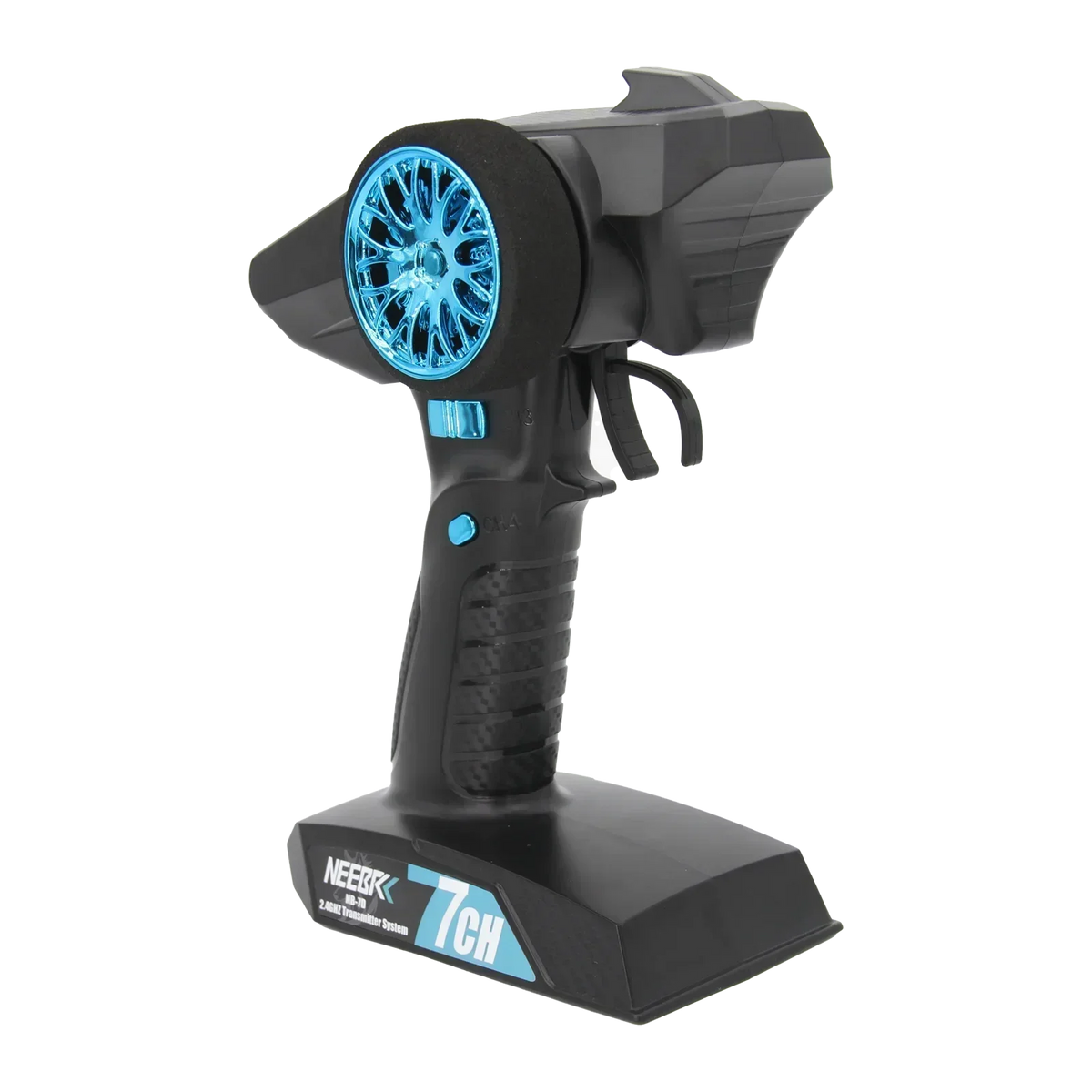

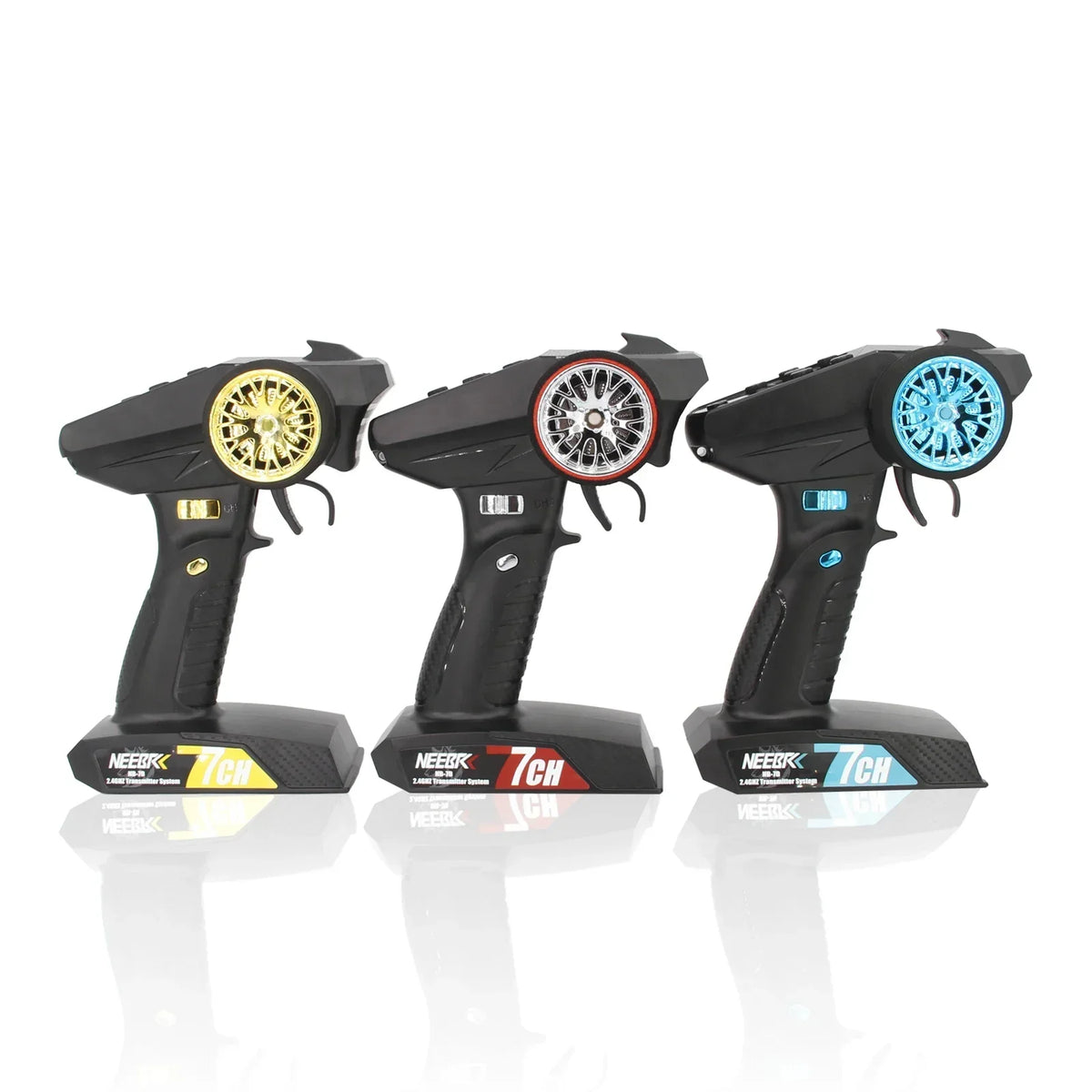

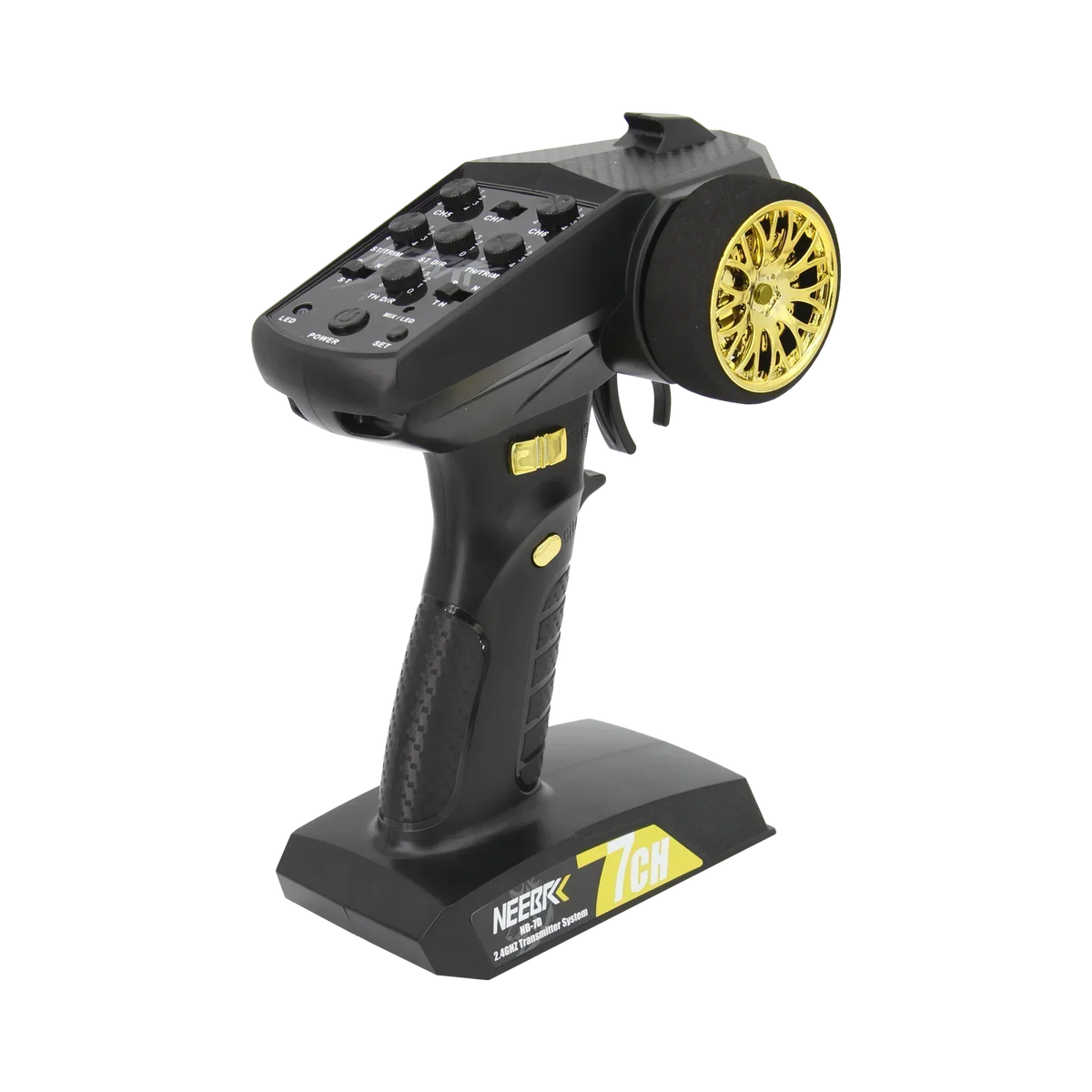

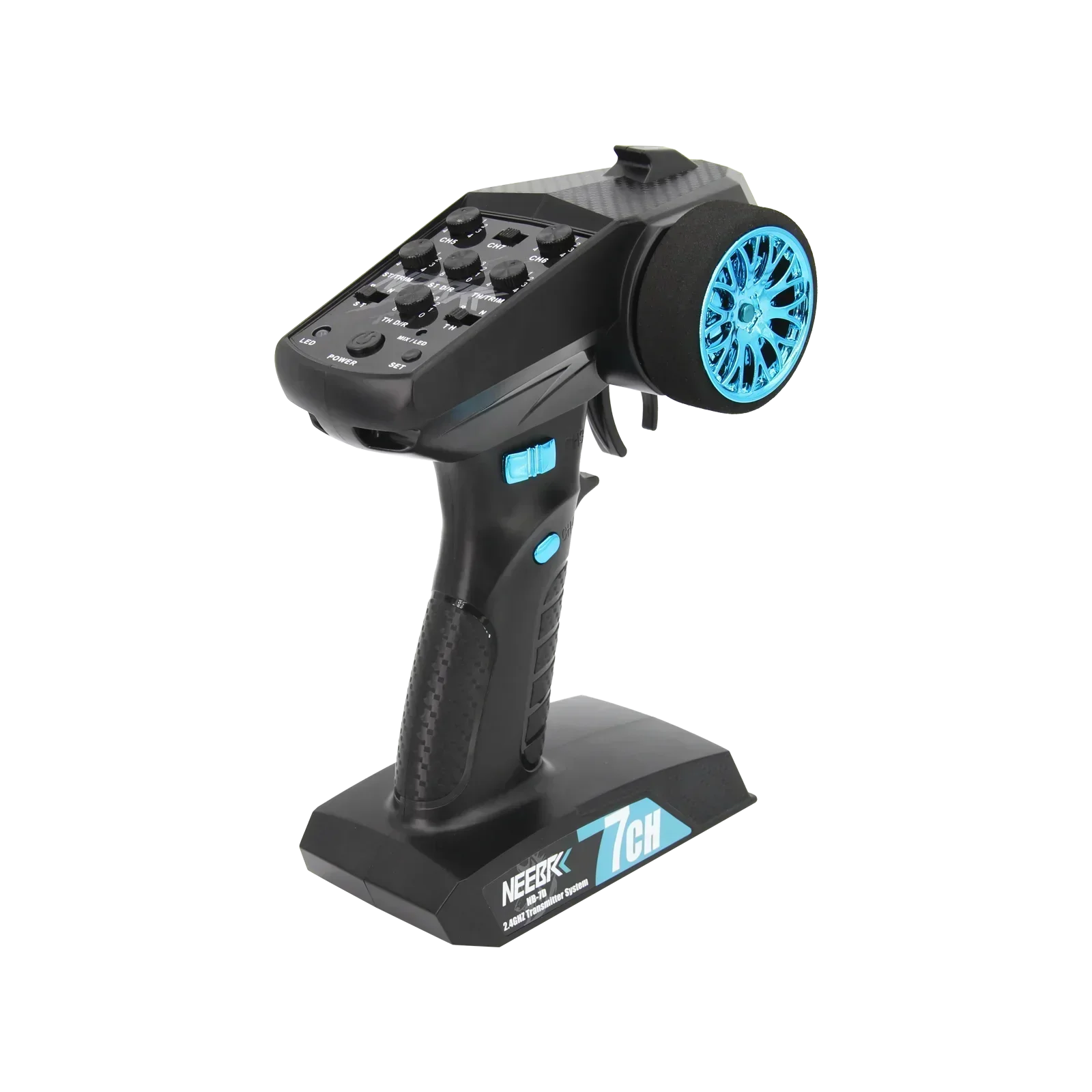

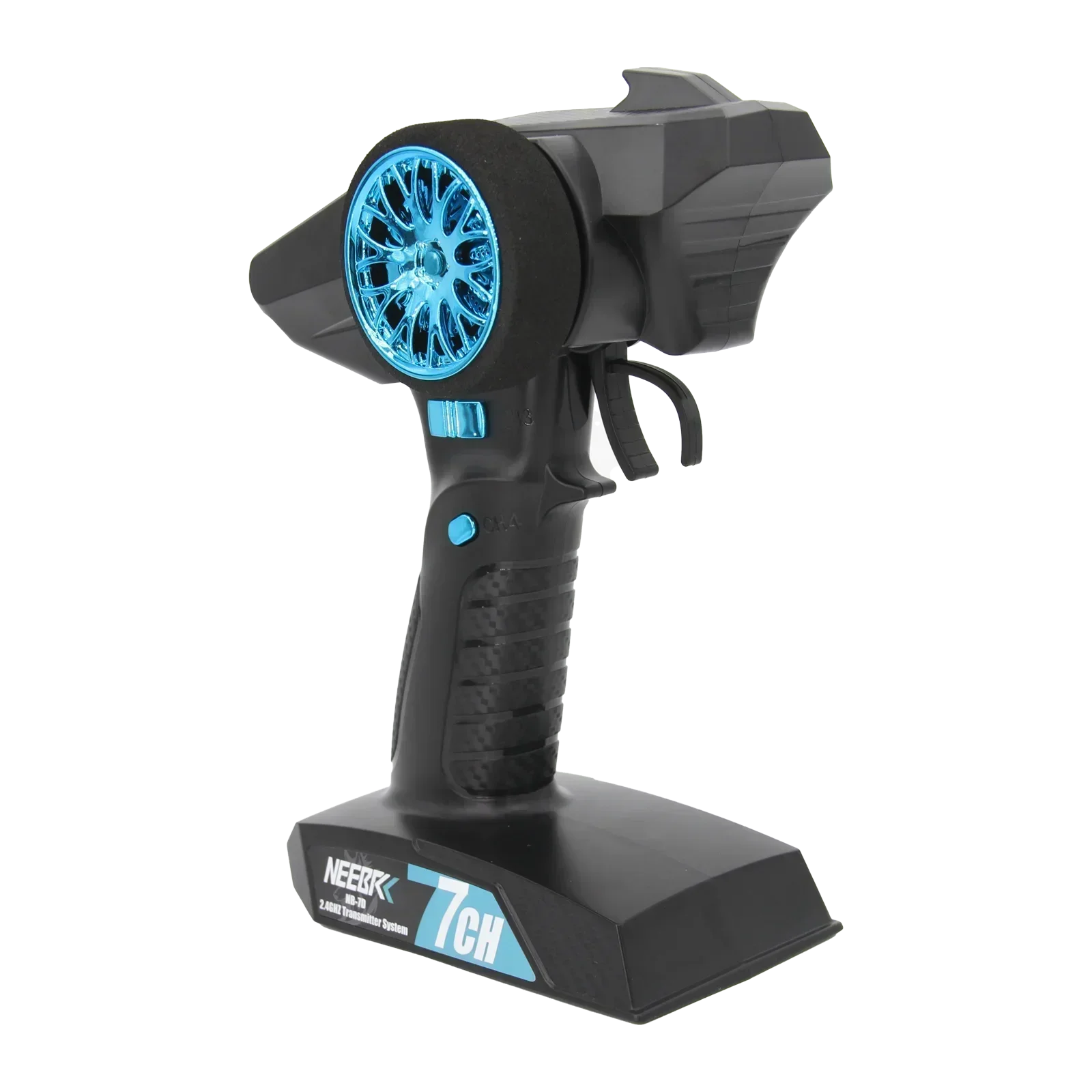

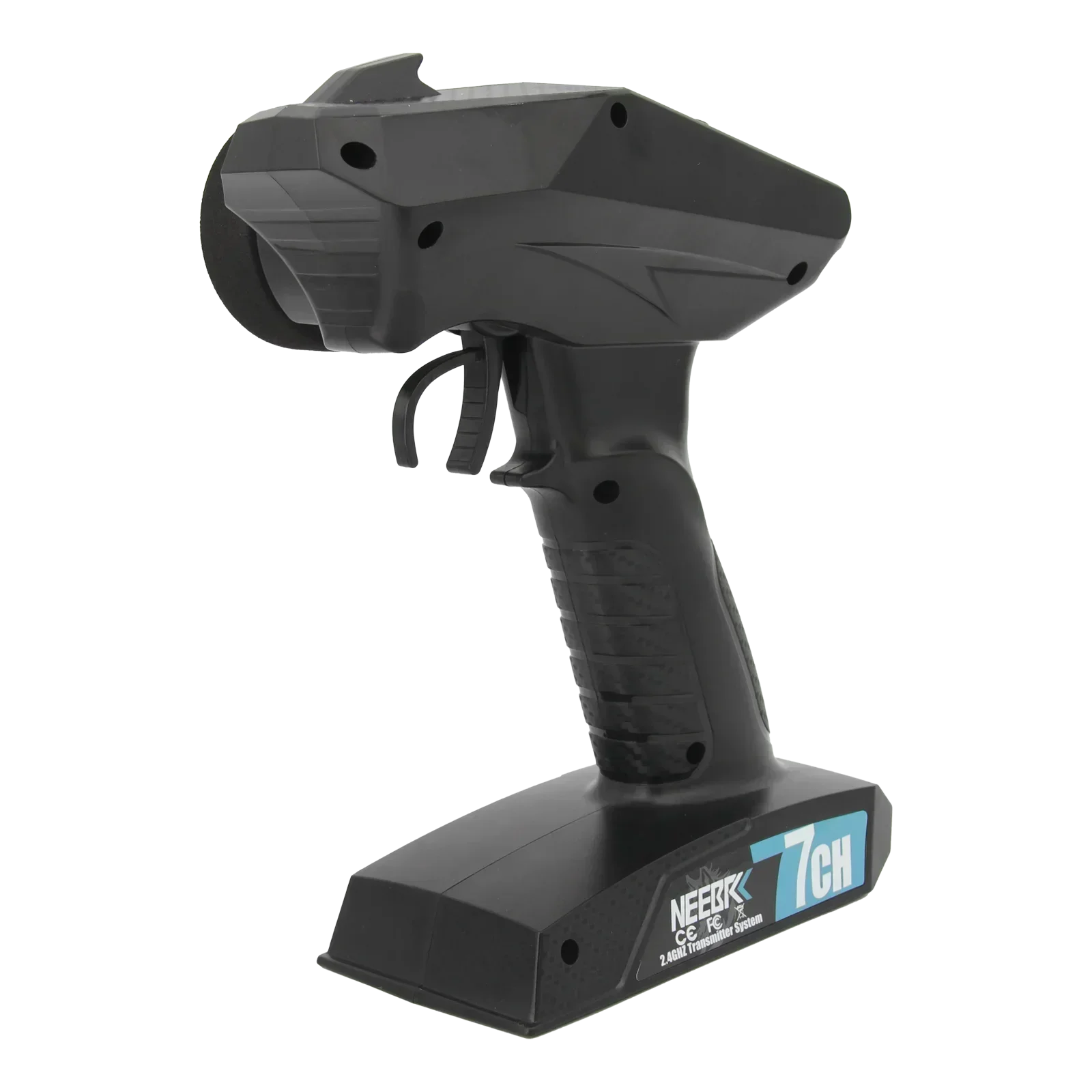

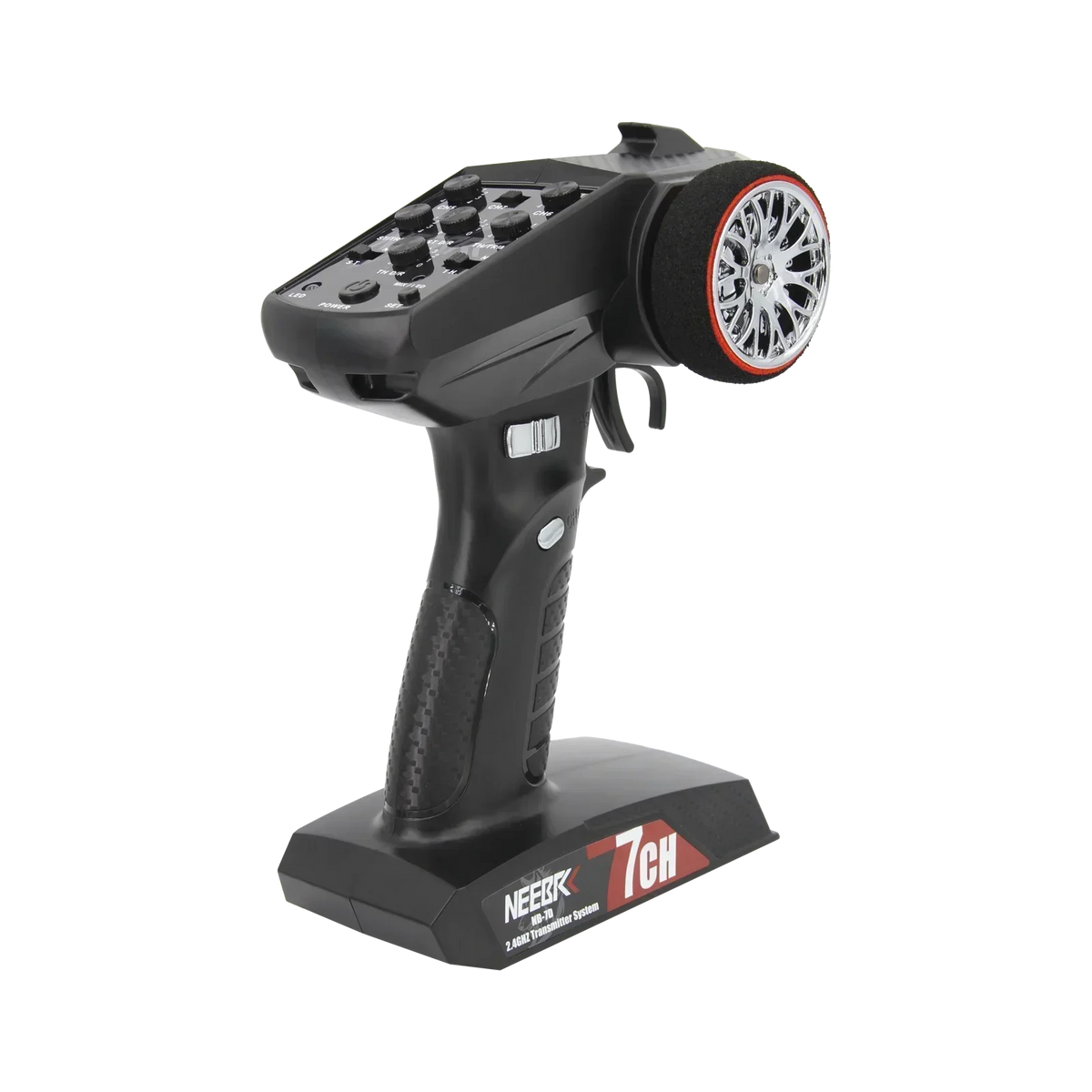

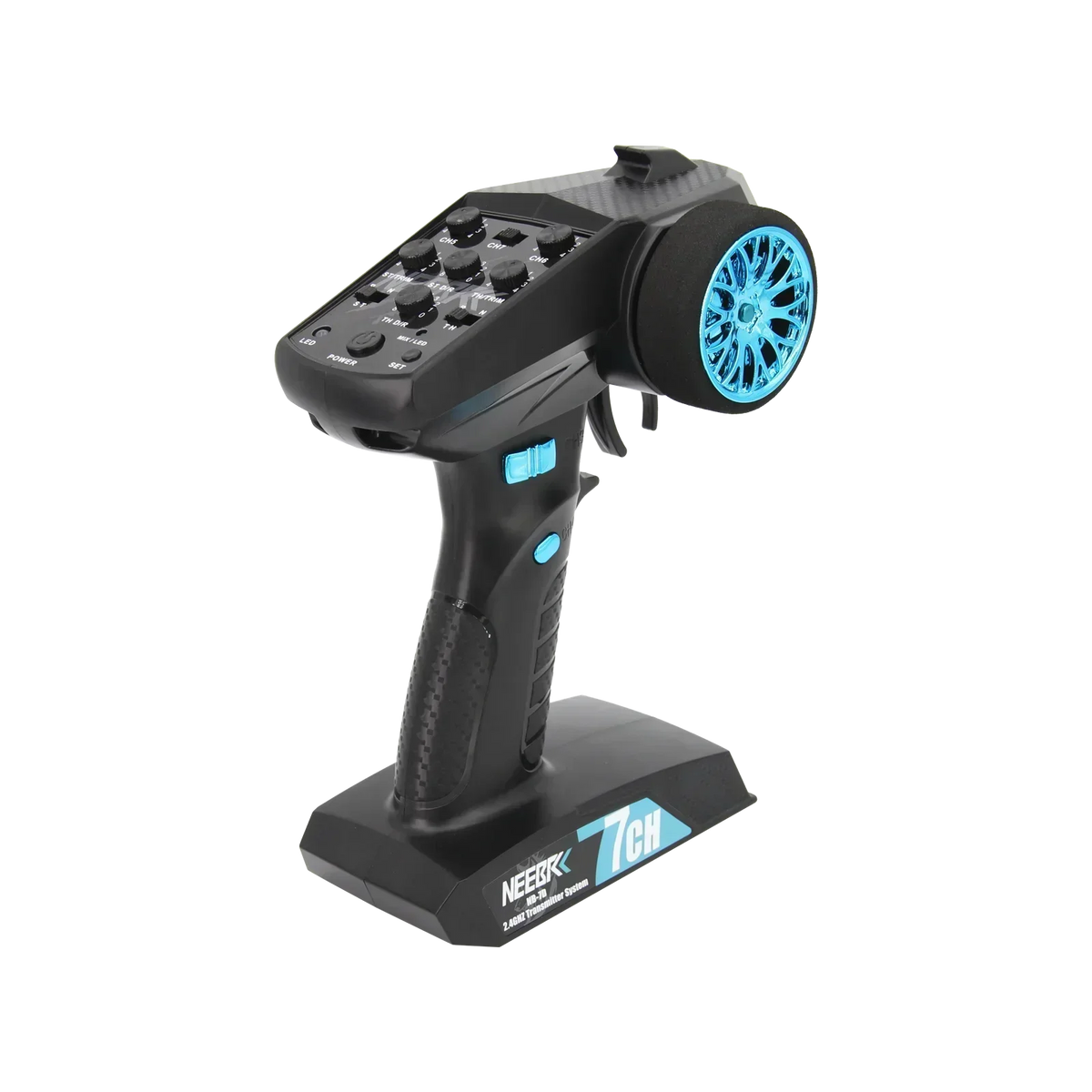

Transmitter Specification:

Product Model:NB-7D

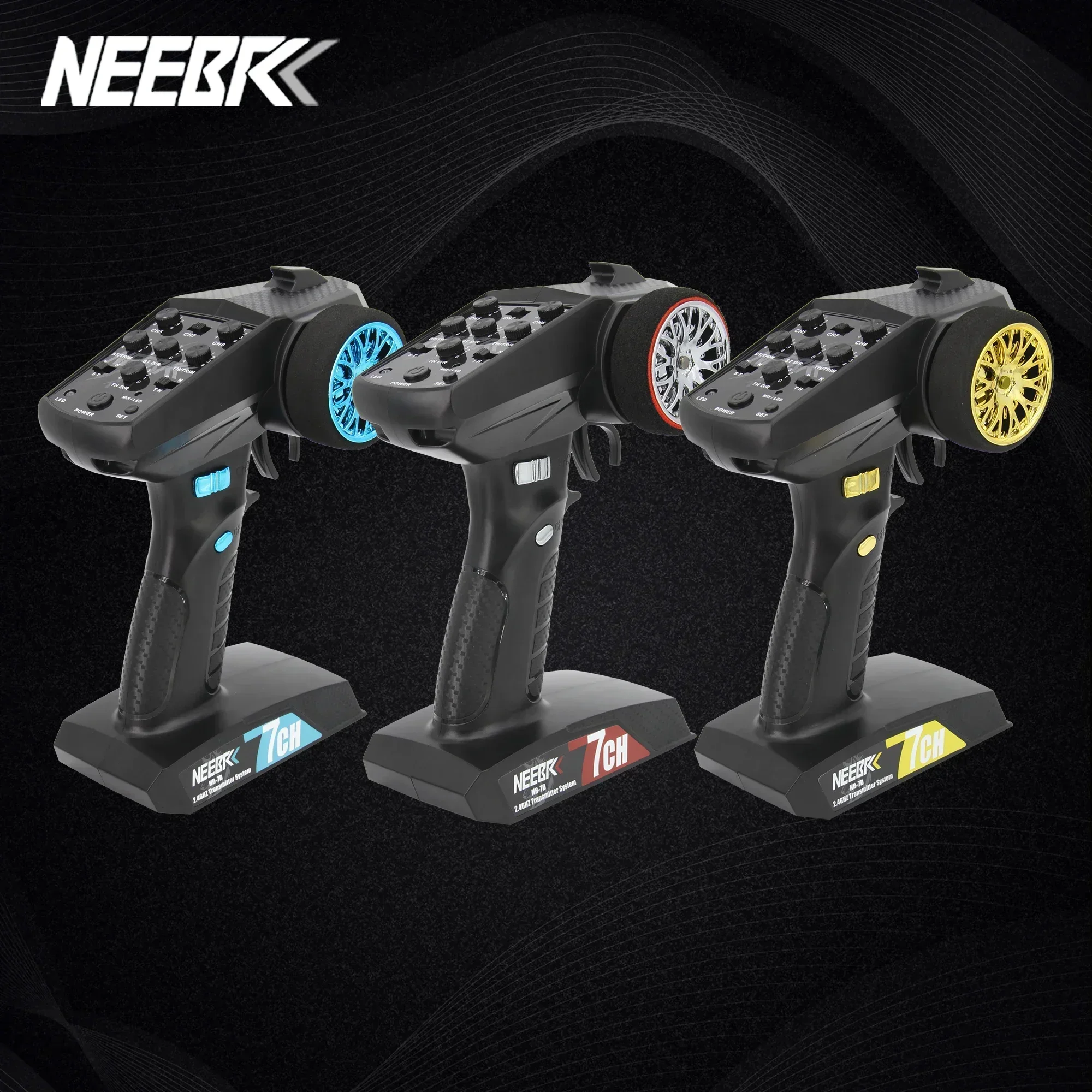

Wheelhandle Color Optional:Blue/Red/Gold

Channel: 7

Model Type:RC Car/Boat
RF:2.4GHz

RF Power: <20dBm

Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)

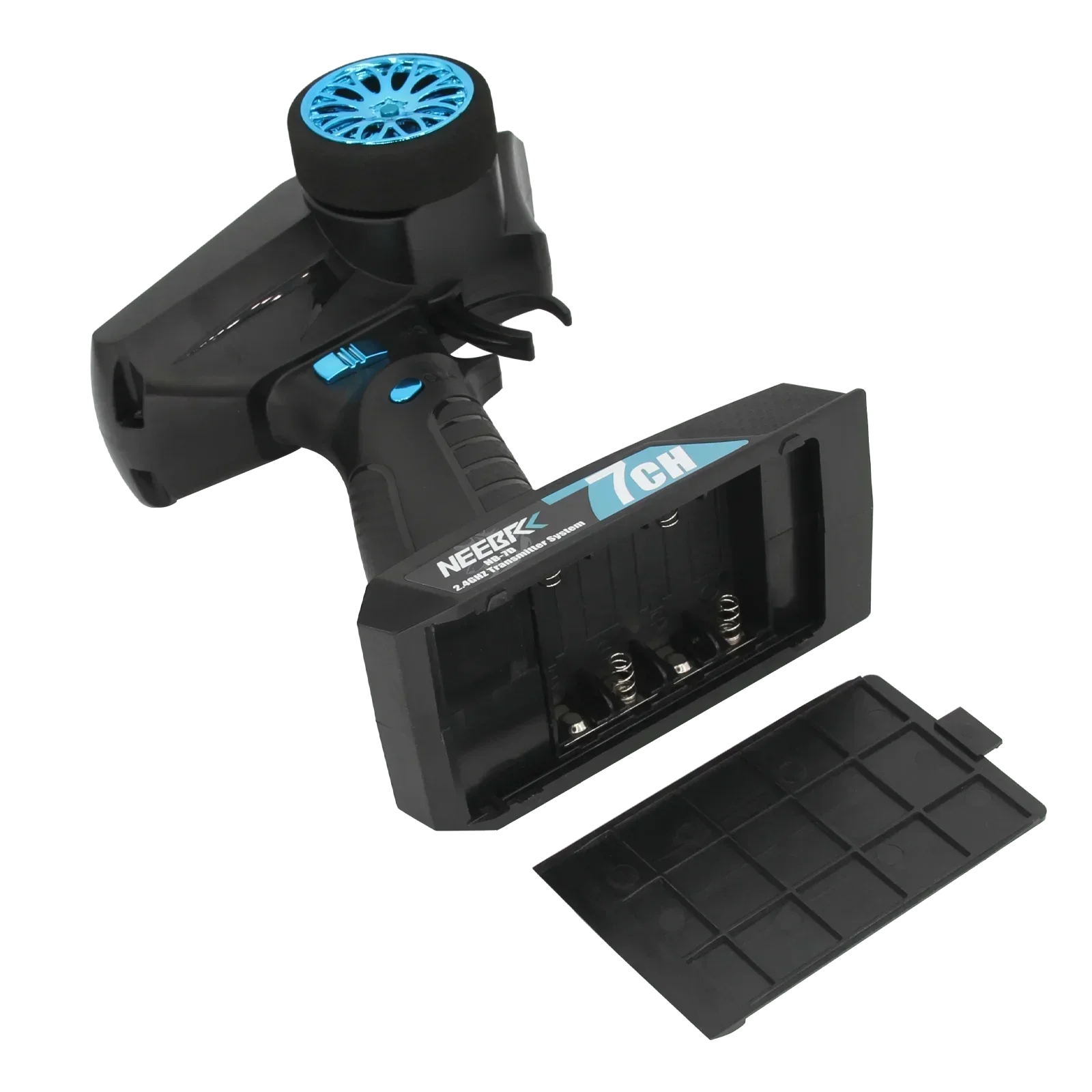

Battery:6V DC 1.5AA*4

Working voltage:4.2-6V

Antenna Type: Built-in single antenna

Low Voltage Warning:<4.4V

Color:Blue

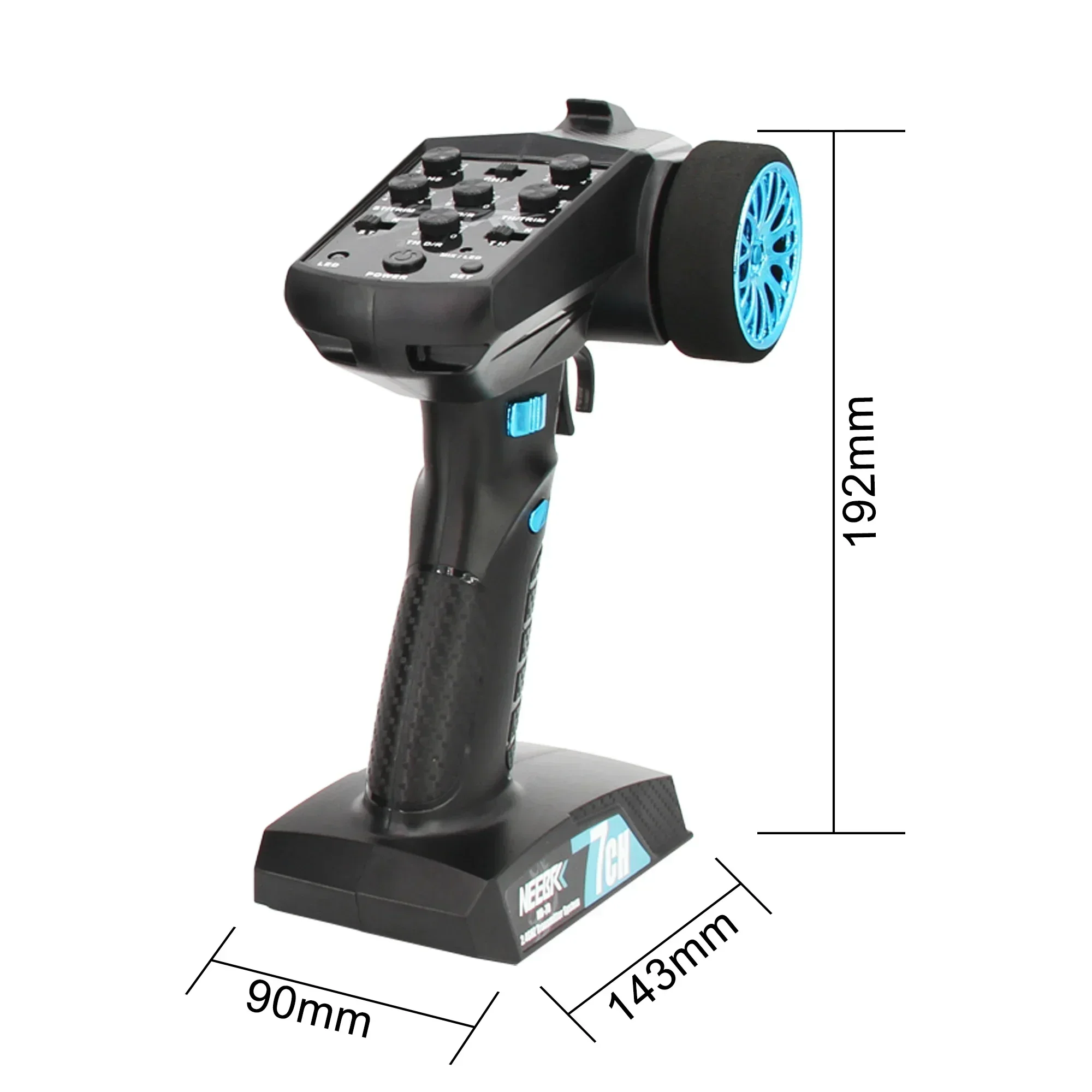

Size: 143*90*192mm

Weight: 228g

Certification:CE FCC

Data Interface: NO
Online Update: NO

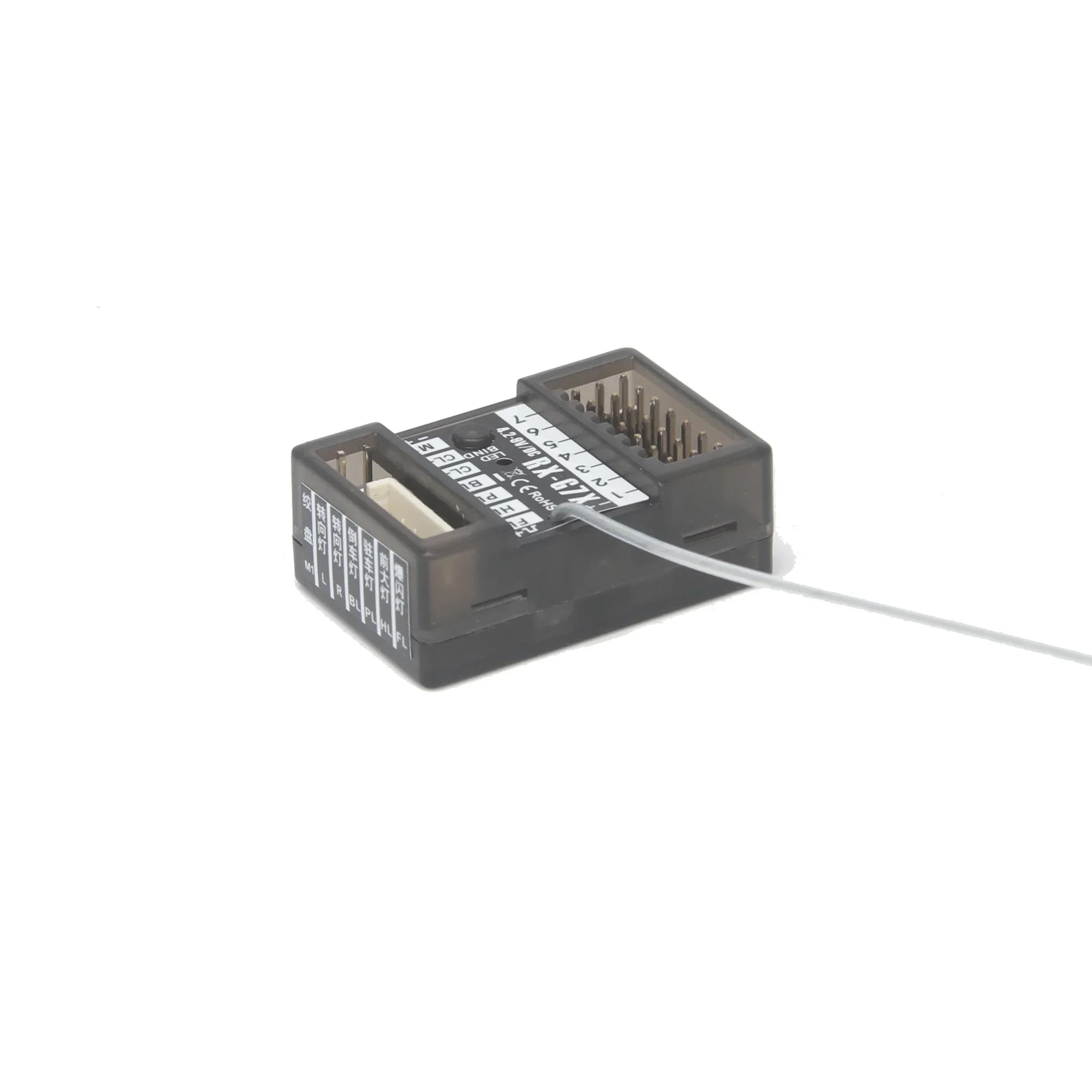

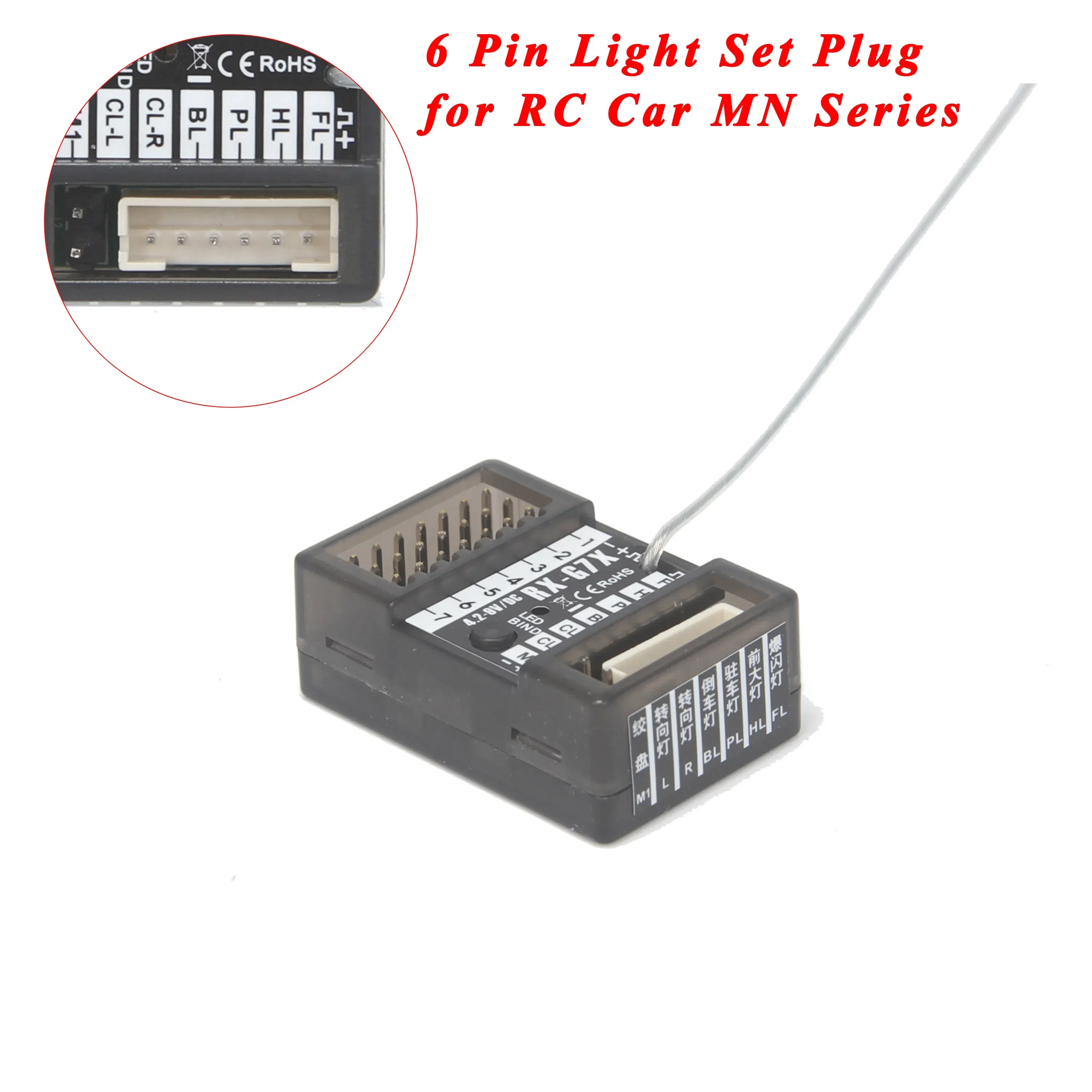

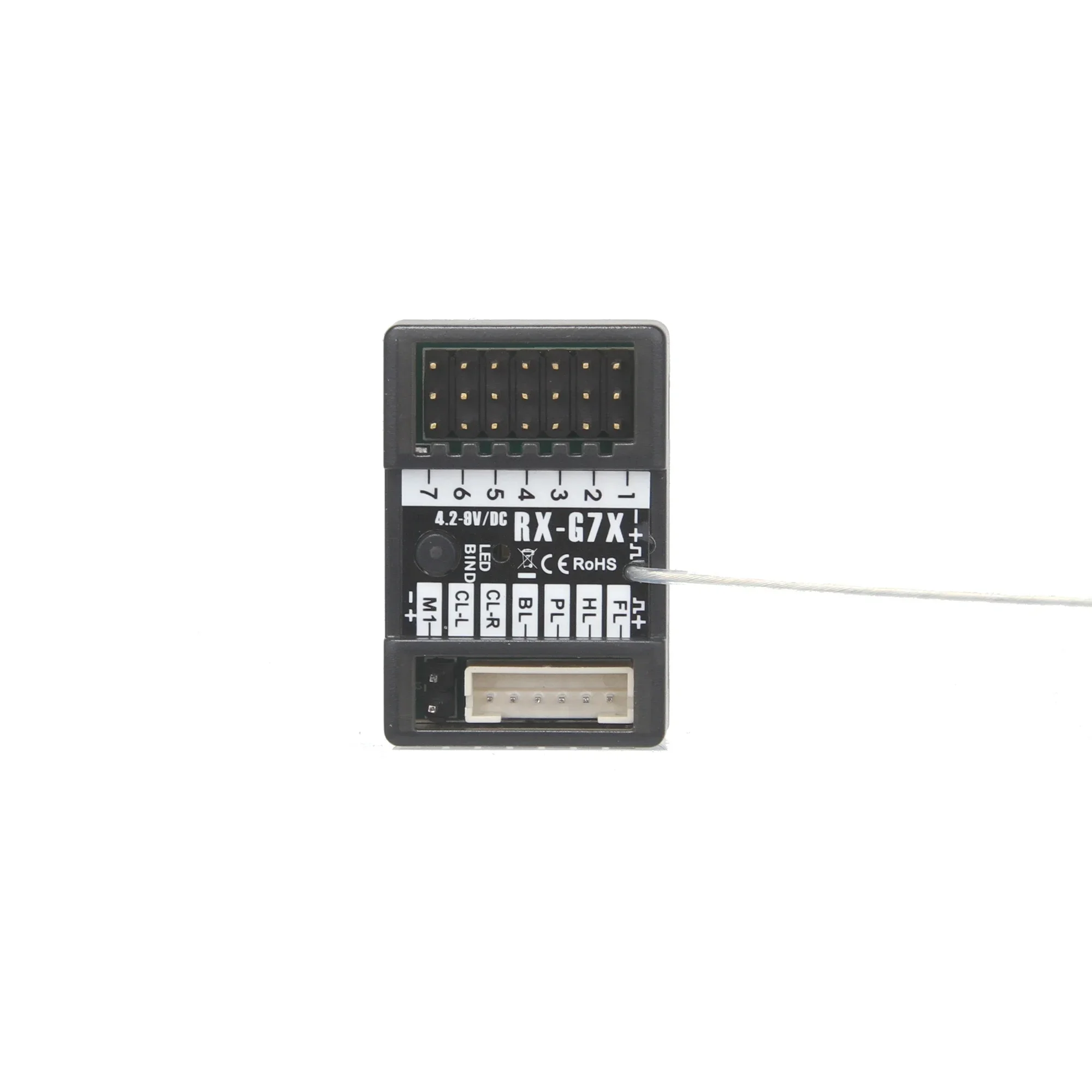

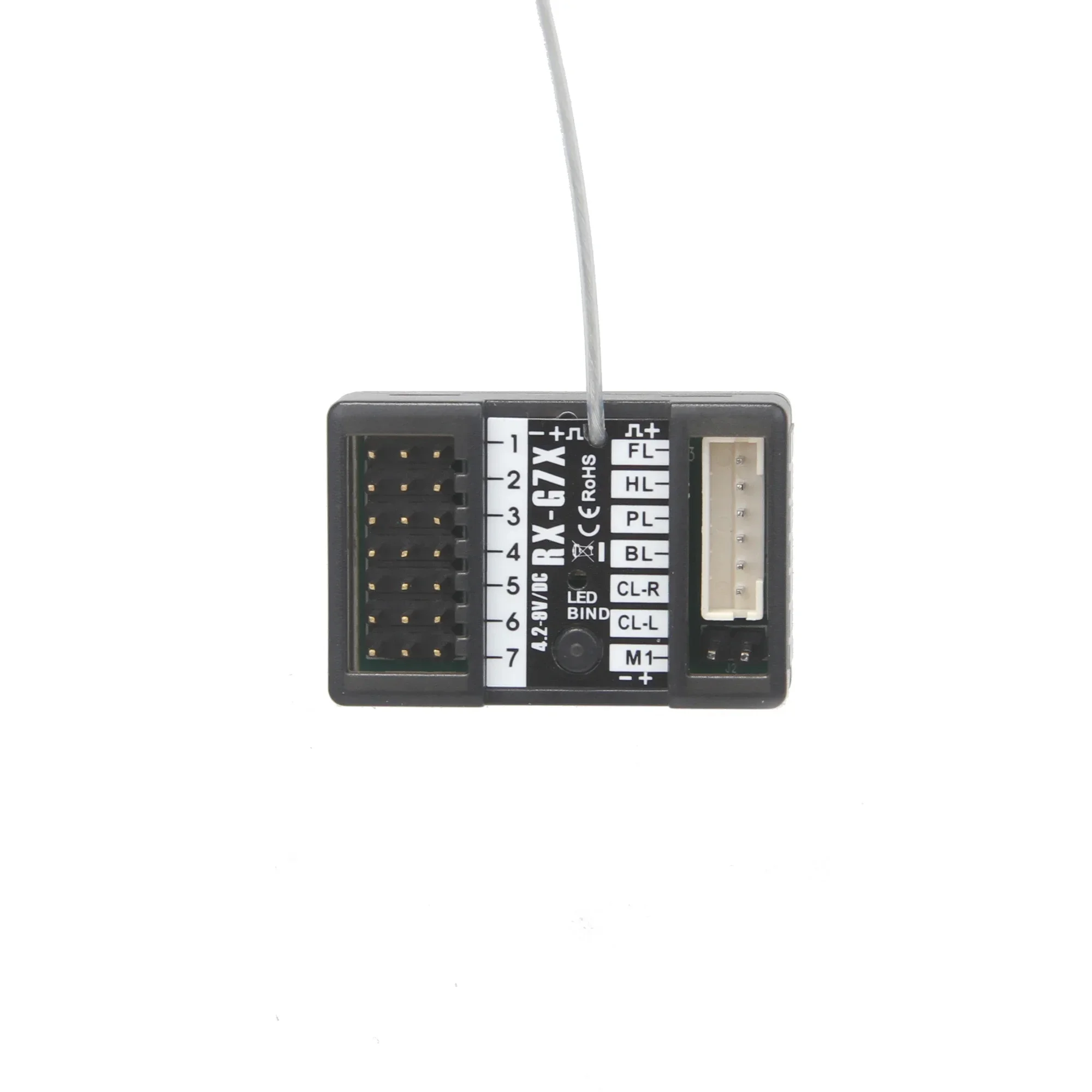

Receiver Specification:

Product Model:RX-G7X

Channel: 7

Model Type:RC Car/Boat
RF:2.4GHz

Code Type: GFSK

Sensitivity:1024GB
Distance: >150m(ground)
Working voltage :4.2V-10V

Antenna Type:Outlay single antenna

Size: 36.6*23.8*13.4mm

Weight:10g

Certification:CE FCC

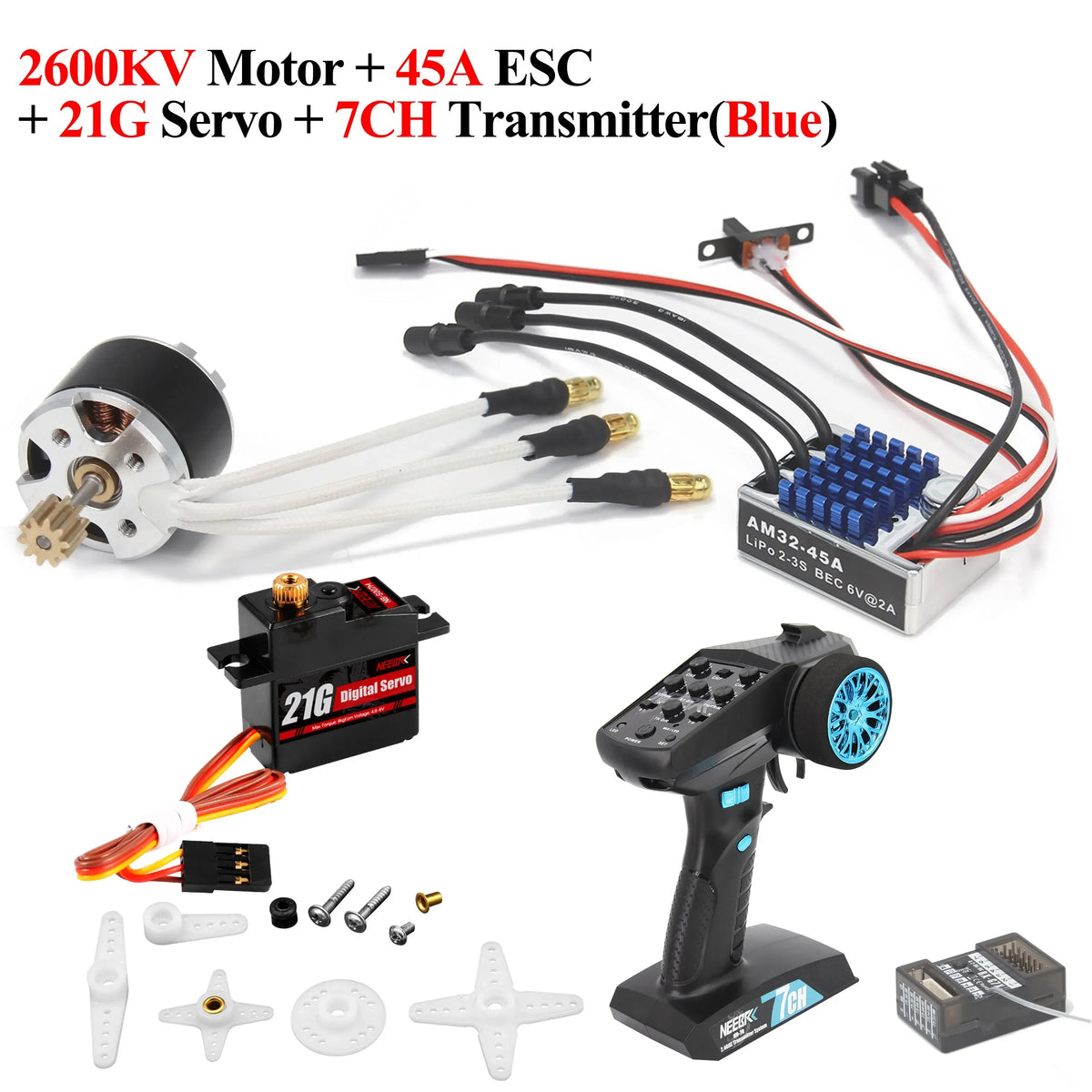

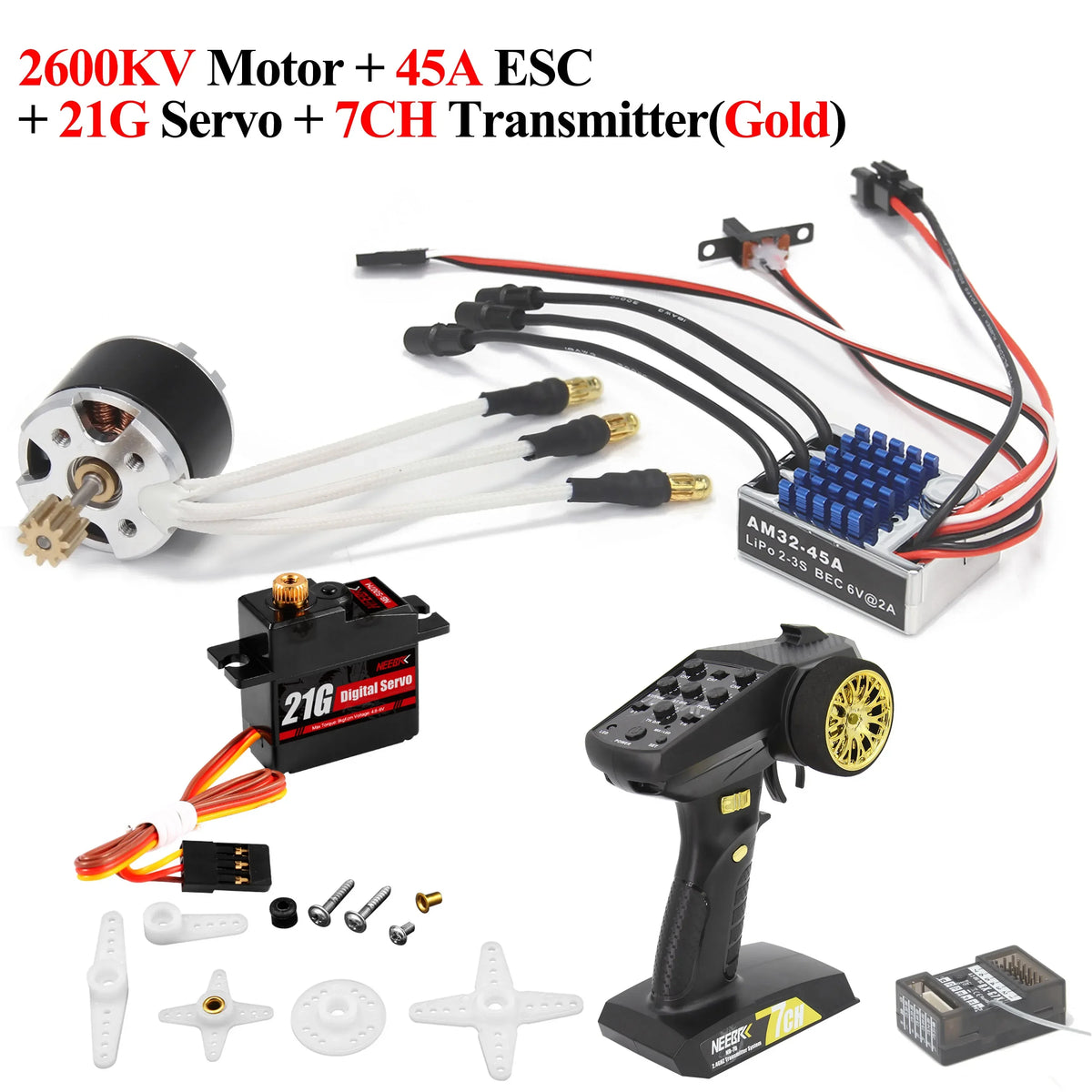

Package include:

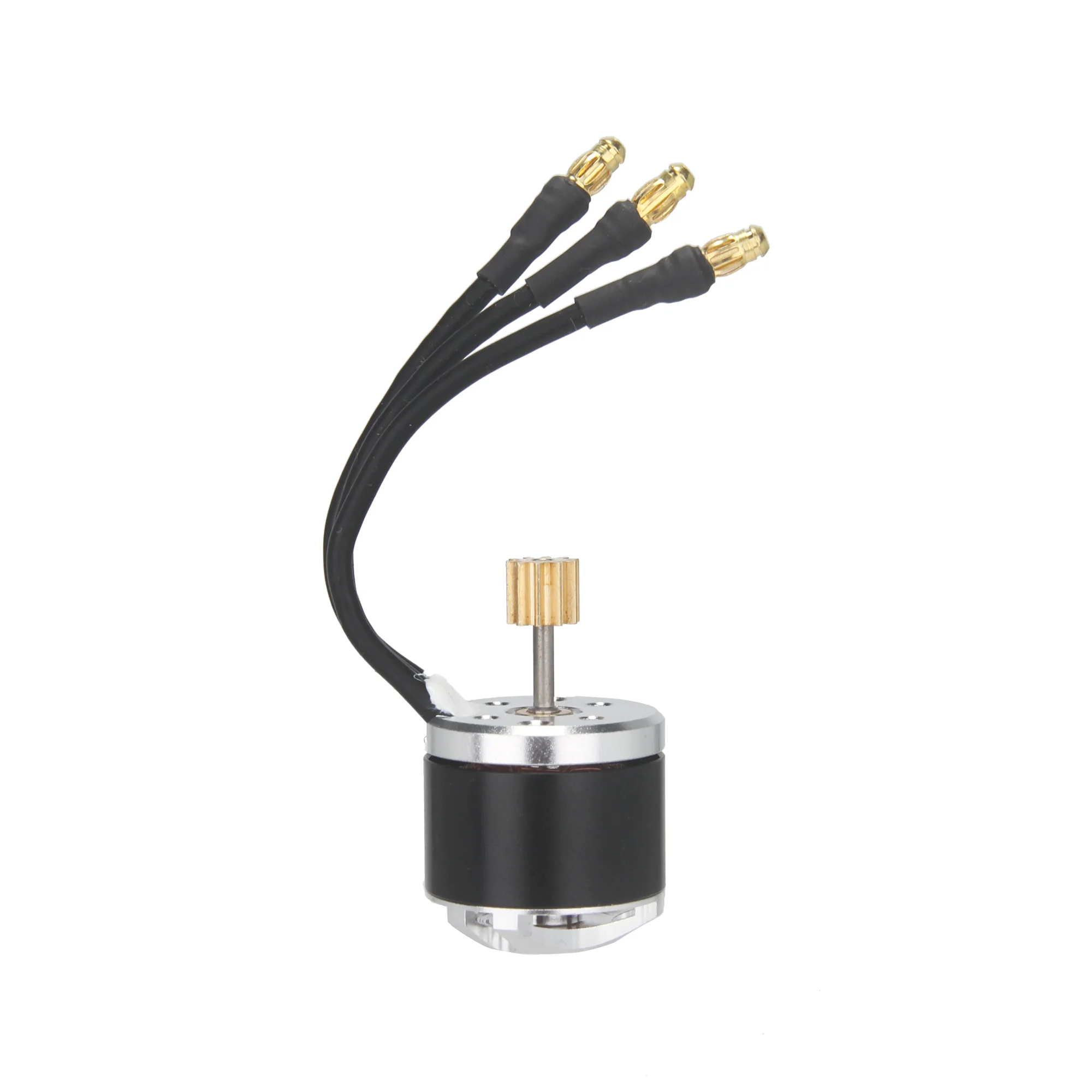

1 x 2322 2600KV
1 x AM32 45A
1 x 7CH Tranmitter
1 x 7CH Receiver
1 x 21g Metal Gear Servo
1 x Servo Arm Accessories
